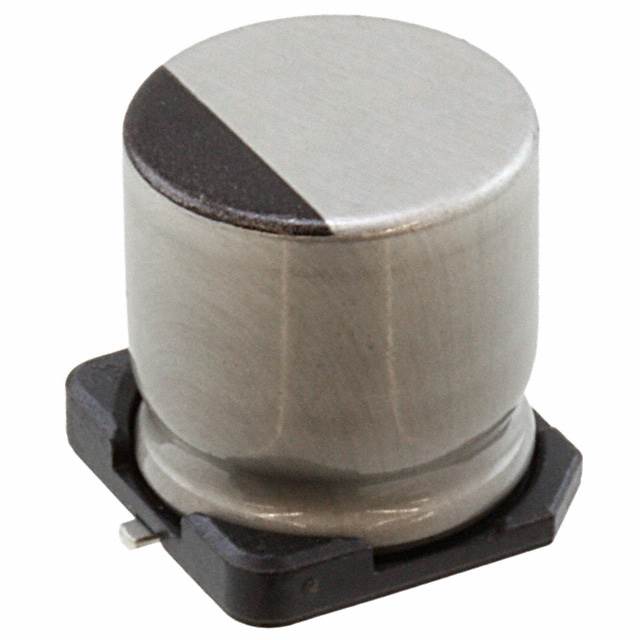

UCZ1A331MCL1GS

UCZ1A331MCL1GS is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 330UF 20% 10V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UCZ1A331MCL1GS

• Description：CAP ALUM 330UF 20% 10V SMD
• Series：UCZ
• Mfr：Nichicon
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：330 µF
• Tolerance：±20%
• Voltage - Rated：10 V
• ESR (Equivalent Series Resistance)：150mOhm
• Lifetime @ Temp.：3000 Hrs @ 125°C
• Operating Temperature：-40°C ~ 125°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：General Purpose
• Ripple Current @ Low Frequency：250 mA @ 120 Hz
• Ripple Current @ High Frequency：500 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.394" Dia (10.00mm)
• Height - Seated (Max)：0.394" (10.00mm)
• Surface Mount Land Size：0.406" L x 0.406" W (10.30mm x 10.30mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for UCZ1A331MCL1GS
