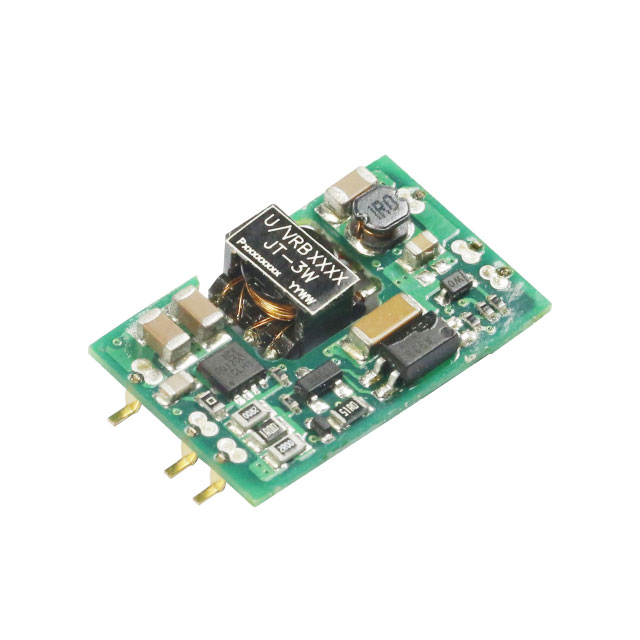

URB2412JT-3W

URB2412JT-3W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER 12V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for URB2412JT-3W

• Description：DC DC CONVERTER 12V 3W
• Series：URB2412JT-3W (3W)
• Mfr：Mornsun America, LLC
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA
• Power (Watts)：3 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：81%
• Mounting Type：Surface Mount
• Package / Case：6-SMD Module
• Size / Dimension：0.94" L x 0.59" W x 0.24" H (24.0mm x 15.1mm x 6.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, UKCA
• Standard Number：62368-1

DC DC Converters datasheet and documents for URB2412JT-3W
