UU7560SF

Overview

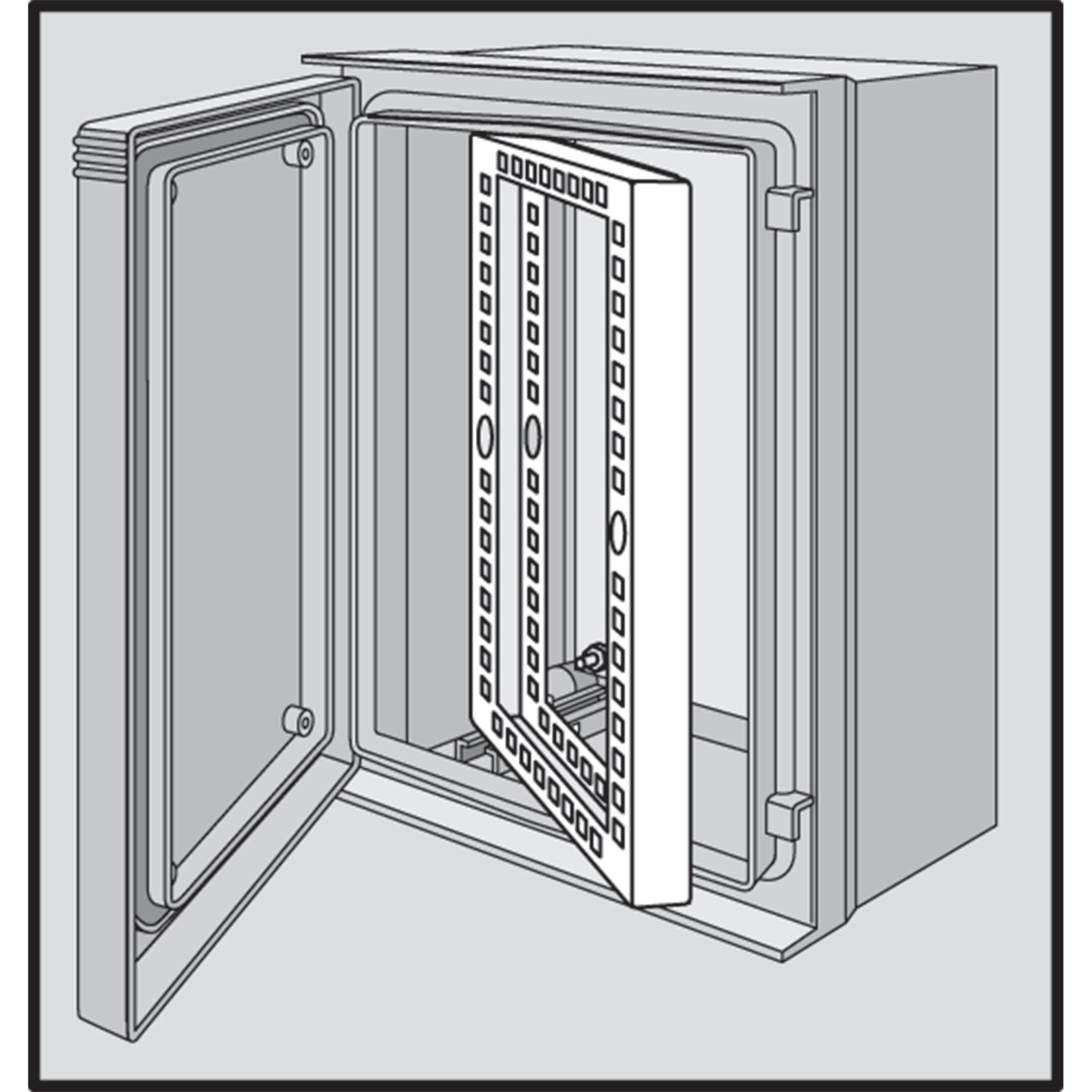

The UU7560SF is a swing-out rack frame designed for nVent Hoffman Ultrx series enclosures. It provides 14U of mounting capacity and fits internal dimensions of 775mm x 612mm. Constructed from steel, it supports 19-inch rack-mounting with a Type RA hole pattern. The unit features a quarter-turn latch enabling a 100-degree swing for access.

Feature Summary

• Provides 19-inch rack-mounting capabilities within compatible enclosure models
• Features a quarter-turn latch mechanism allowing a 100-degree swing angle
• Utilizes U-Style (Type RA) mounting hole pattern for standard equipment

Applications

• Mounting electronic components in Ultrx series wall-mount enclosures
• Industrial control panel integration requiring swing-out access
• Food, beverage, and pharmaceutical environments needing frequent washdown compatibility

Procurement Notes

Verify that the target enclosure model is part of the Ultrx series to ensure physical compatibility. Confirm that the internal width and depth accommodate the 775mm x 612mm frame dimensions. Check for required accessories such as mounting hardware or specific latch configurations if not included in the base unit.

Selection Notes

Select this frame only when utilizing an Ultrx series enclosure that matches the specified internal footprint. Ensure the application requires 14U of vertical space. Consider the material properties of the host enclosure, as the frame is designed for stainless steel environments typical of washdown applications.

Part Context

This component serves as an accessory for the Ultrx line of electrical enclosures manufactured by nVent Hoffman. It is specifically engineered to convert standard wall-mount boxes into functional rack systems. The product is distinct from standalone enclosures and functions solely as an internal mounting structure.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific swing frame model. Compatibility is limited to the Ultrx series; generic rack frames may not fit the 775mm x 612mm internal dimensions or utilize the correct Type RA hole pattern.
