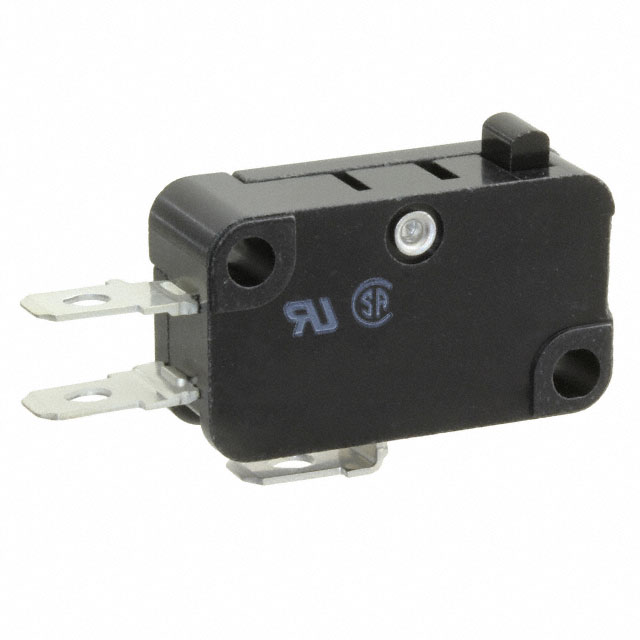

V-10-1A4-T

V-10-1A4-T is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 10A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for V-10-1A4-T

• Description：SWITCH SNAP ACTION SPDT 10A 250V
• Series：V
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：10A (AC), 600mA (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：100gf
• Release Force：20gf
• Operating Position：0.579" (14.7mm)
• Pretravel：0.047" (1.2mm)
• Differential Travel：0.016" (0.4mm)
• Overtravel：0.040" (1.0mm)
• Operating Temperature：-25°C ~ 150°C
• Voltage Rating - DC：125 V
