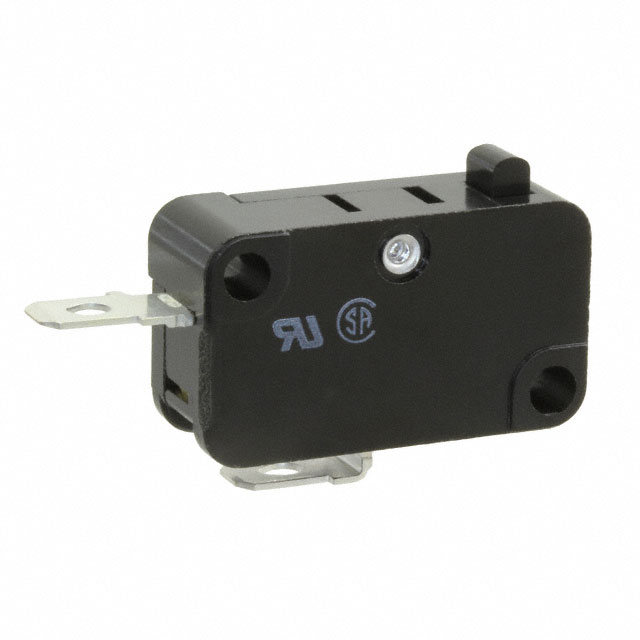

V-10-2A5

V-10-2A5 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACT SPST-NC 10A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for V-10-2A5

• Description：SWITCH SNAP ACT SPST-NC 10A 250V
• Series：V
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Circuit：SPST-NC
• Switch Function：On-Mom
• Current Rating (Amps)：10A (AC), 600mA (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：200gf
• Release Force：50gf
• Operating Position：0.579" (14.7mm)
• Pretravel：0.047" (1.2mm)
• Differential Travel：0.016" (0.4mm)
• Overtravel：0.040" (1.0mm)
• Operating Temperature：-25°C ~ 80°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for V-10-2A5
