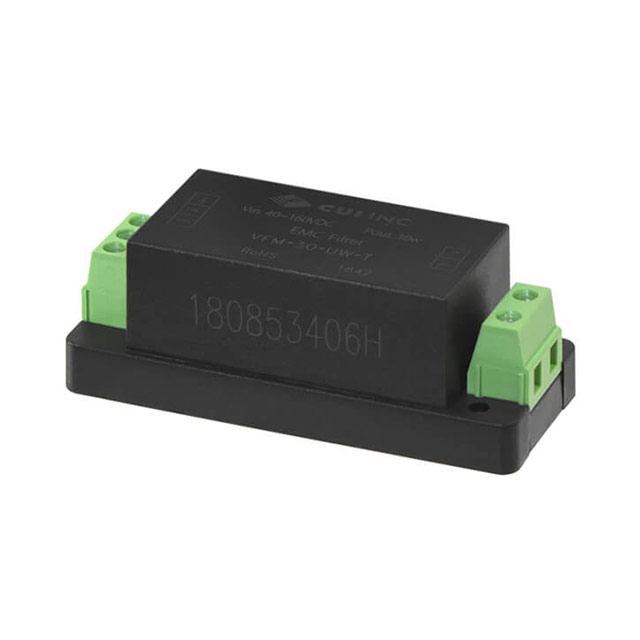

VFM-30-UW-T

$24.42

Description：LINE FILTER 160VDC CHASSIS MOUNT
Series：VFM-30-UW
Mfr：CUI Inc.
Package：Tray

SKU:7f7703408921 Category: Power Line Filter Modules Brand: CUI Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VFM-30-UW-T is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is LINE FILTER 160VDC CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for VFM-30-UW-T

Description：LINE FILTER 160VDC CHASSIS MOUNT
Series：VFM-30-UW
Mfr：CUI Inc.
Package：Tray
Filter Type：DC
Configuration：Single Stage
Voltage - Rated DC：160V
Voltage - Rated AC：-
Current：-
Frequency - Operating：-
Applications：General Purpose
Approval Agency：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for VFM-30-UW-T

VFM-30-UW-T

Power Line Filter Modules Overview

The VFM-30-UW-T is a DC power line filter manufactured by CUI Inc. It operates within an input voltage range of 40 to 160 VDC and supports a maximum current rating of 0.001 A with a leakage current of 5 mA. Designed for PCB mounting, this single-stage EMC/EMI filter addresses electromagnetic interference in DC circuits. The component complies with RoHS standards and is part of the VFM-30 series.

Power Line Filter Modules Feature Summary

Provides single-stage EMC/EMI filtering for DC power lines
Designed for printed circuit board (PCB) mounting
Operates within a wide DC input voltage range

Power Line Filter Modules Applications

DC power line noise suppression
Electromagnetic compatibility enhancement in electronic devices
EMI reduction in low-current DC circuits

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and compliance documentation directly from CUI Inc. or authorized distributors before procurement. Confirm that the 0.001 A current rating meets the application requirements, as this value appears exceptionally low for a 30 W rated filter; cross-reference with official technical specifications to ensure accuracy and suitability for the intended design.

Power Line Filter Modules Selection Notes

Select this component when PCB-mounted DC filtering is required for voltages between 40 and 160 VDC. Ensure the application current does not exceed the specified 0.001 A rating. Verify mechanical fit for PCB integration and confirm that the single-stage filtering capability aligns with the system's EMI mitigation needs.

Power Line Filter Modules Part Context

The VFM-30-UW-T belongs to the VFM-30 series of DC power line filters from CUI Inc. This series includes variants such as the VFM-30-W and VFM-30-UW-D, offering different mounting options and configurations. These components are engineered to provide reliable electromagnetic interference suppression in DC applications.
