VJ5301M400MXBSR

$5.11

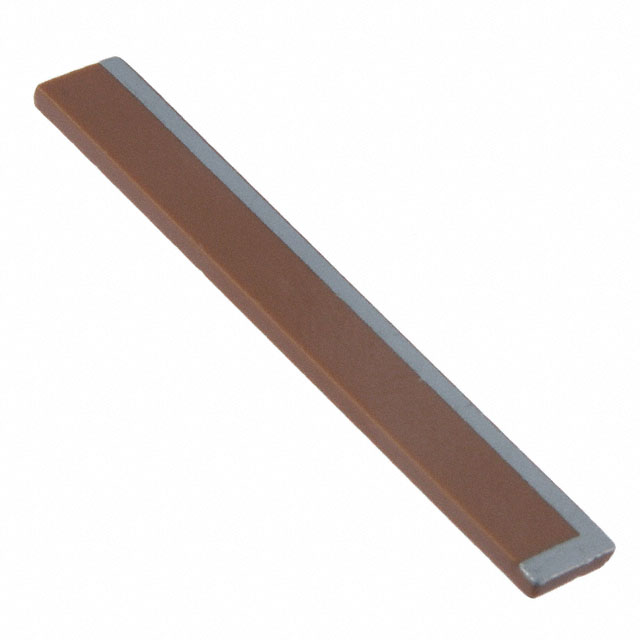

Description：RF ANT 400MHZ CHIP SOLDER SMD
Series：-
Mfr：Vishay Vitramon
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:768e216b8d97 Category: RF Antennas Brand: Vishay Vitramon

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

VJ5301M400MXBSR is listed in the Antennas RF range at ChipApex. The manufacturer field lists Vishay Vitramon. Its product description is RF ANT 400MHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for VJ5301M400MXBSR

Description：RF ANT 400MHZ CHIP SOLDER SMD
Series：-
Mfr：Vishay Vitramon
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：400MHz
Frequency Range：360MHz ~ 480MHz
Antenna Type：Chip
Number of Bands：1
VSWR：-
Return Loss：-3dB
Gain：-8.7dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.047" (1.20mm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for VJ5301M400MXBSR

VJ5301M400MXBSR

Antennas RF Overview

The VJ5301M400MXBSR is a chip RF antenna manufactured by Vishay Vitramon, designed for surface-mount soldering applications. It operates within the UHF frequency group, specifically centered at 400MHz with a functional bandwidth ranging from 360MHz to 480MHz. The component exhibits a gain of -8.7dBi and maintains a maximum height of 0.047 inches (1.20mm). It complies with RoHS3 standards and holds an MSL rating of 1. This part is currently obsolete and no longer in production.

Antennas RF Feature Summary

Integrated chip design optimized for direct surface-mount soldering onto PCBs
Operates within the UHF band covering 360MHz to 480MHz
Low profile construction with a maximum height of 1.20mm

Antennas RF Applications

UHF wireless communication systems
Industrial, Scientific, and Medical (ISM) radio devices
Remote control and telemetry equipment

Antennas RF Procurement Notes

This component is officially classified as obsolete and has ceased manufacturing. Procurement must rely on existing surplus stock or verified substitute parts. Verify RoHS3 compliance and MSL level 1 status against current inventory certificates. Confirm physical dimensions match the target footprint before integration, as replacement alternatives may vary in package geometry despite electrical similarity.

Antennas RF Selection Notes

Select this part only if the specific 400MHz center frequency and -8.7dBi gain align with system requirements. Due to its obsolete status, alternative sourcing strategies are mandatory. Evaluate substitute components based on impedance matching and radiation pattern consistency rather than exact parameter replication. Ensure the replacement supports the required surface-mount assembly process and thermal profile.

Antennas RF Part Context

The VJ5301M400MXBSR belongs to the Vishay Vitramon VJ Series of antennas. This series provides compact RF solutions for various wireless protocols. The specific model targets the 400MHz segment of the UHF spectrum. It represents a legacy product line that has been discontinued by the manufacturer, necessitating migration to newer or third-party equivalents for ongoing production designs.
