WMA.01.301151

Antennas RF Overview

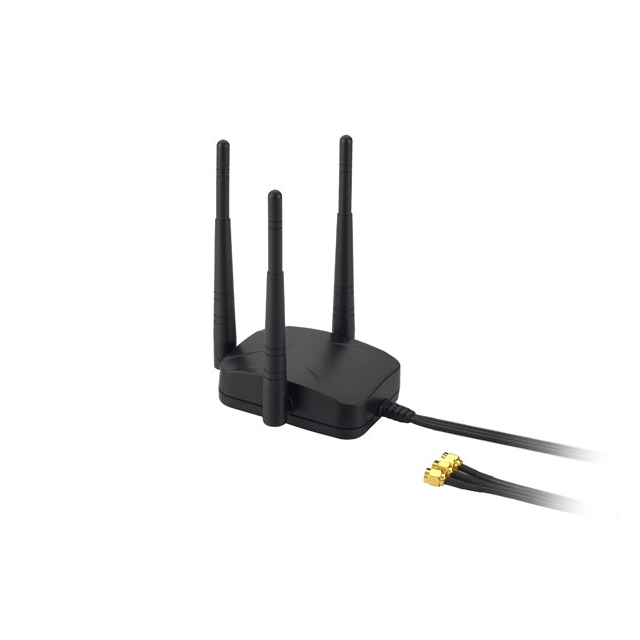

The WMA.01.301151 is a 2.4GHz external omnidirectional antenna manufactured by Taoglas Limited, designed for high-speed data throughput applications. It features a 3x3 MIMO configuration with three individual high-gain elements to enhance signal performance. The antenna provides a gain of 3dBi and supports a maximum power input of 10W. It operates within the UHF frequency group, specifically covering the 2GHz to 3GHz range, with a center frequency around 2.4GHz to 2.5GHz. The unit includes an integrated magnet base for flexible mounting and utilizes RP-SMA male connectors for interface compatibility.

Antennas RF Feature Summary

• Supports 3x3 MIMO technology for improved data throughput
• Features an integrated magnetic base for versatile installation
• Utilizes RP-SMA male connector interfaces

Antennas RF Applications

• Wi-Fi networks
• Bluetooth connectivity
• 802.15.4 protocols

Antennas RF Procurement Notes

Verify component authenticity through authorized Taoglas distributors or certified partners. Confirm that the received hardware matches the specific part number WMA.01.301151 and check for any physical damage to the RP-SMA connectors prior to integration. Ensure compliance with local electromagnetic regulations for outdoor deployment.

Antennas RF Selection Notes

Select this model when a robust external solution is required for 2.4GHz wireless standards. The integrated magnet simplifies temporary or semi-permanent placement without drilling. Consider the 10W power rating for high-power transmission environments and ensure sufficient clearance for the omnidirectional radiation pattern.

Antennas RF Part Context

This component belongs to the Taoglas antenna portfolio, which specializes in RF solutions for mobile and IoT markets. The WMA series focuses on external antennas providing reliable connectivity for devices requiring extended range and stable signal reception in various environmental conditions.

Antennas RF Replacement Considerations

The datasheet indicates this part status is obsolete. Verify availability of direct substitutes from Taoglas or equivalent manufacturers offering similar 2.4GHz 3x3 MIMO specifications with RP-SMA interfaces.
