WP710A10SGD5V

LED Indication - Discrete Overview

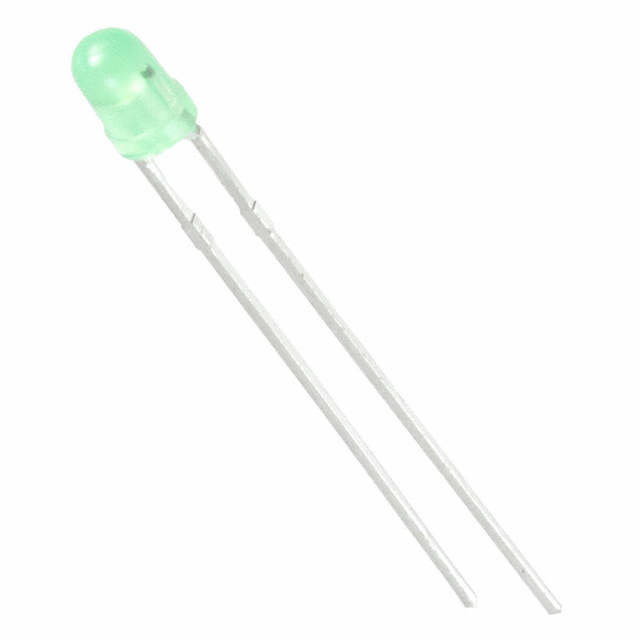

The WP710A10SGD5V is a single-color green LED from Kingbright, utilizing Gallium Phosphide technology. It features a T-1 (3 mm) through-hole package with a dome-shaped lens and water-clear transparency. The device emits at a wavelength of 568 nm with an intensity of 25 mcd and a viewing angle of 40 degrees. Electrical characteristics include a forward voltage of 5 V at 20 mA, with a power rating of 75 mW. It operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

• Integrates a built-in 5V resistor for simplified circuit design
• Utilizes Gallium Phosphide material for high-brightness green emission
• Features a standard T-1 (3 mm) radial leaded package

LED Indication - Discrete Applications

• Panel indicator lights
• Control board status displays
• Appliance front panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'GD5V' confirms the integrated 5V resistor functionality, as this alters electrical behavior compared to standard variants. Ensure the datasheet specifies the 568 nm peak wavelength and 25 mcd intensity for the required application brightness. Confirm RoHS compliance details are current for the manufacturing batch.

LED Indication - Discrete Selection Notes

Select this component when direct connection to a 5V logic supply is required without external current-limiting resistors. The T-1 form factor suits tight PCB spacing constraints. Consider the 40-degree viewing angle for focused visibility needs. Verify thermal management requirements against the 75 mW power rating during continuous operation.

LED Indication - Discrete Part Context

This part belongs to the Kingbright WP710 series of super bright LEDs. The series offers various colors and configurations, including versions with integrated resistors. The WP710A10SGD5V specifically addresses applications requiring green indication with simplified biasing circuits, distinguishing it from standard discrete LED components in the same family.

LED Indication - Discrete Replacement Considerations

Substitutes must match the 3 mm T-1 package dimensions and 5V internal resistor specification. Generic green LEDs require external resistor calculation. Verify that alternative parts maintain the 568 nm wavelength and similar luminous intensity for visual consistency.
