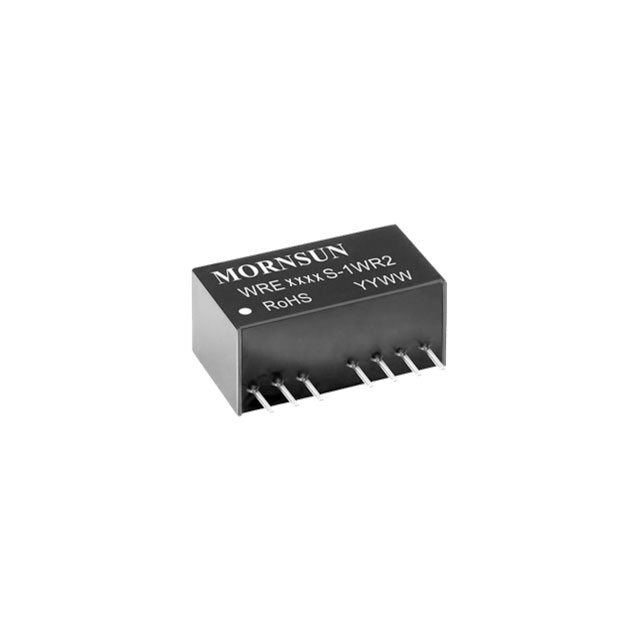

WRE1212S-1WR2

WRE1212S-1WR2 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is ISOLATED MODULE DC DC CONVERTER. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for WRE1212S-1WR2

• Description：ISOLATED MODULE DC DC CONVERTER
• Series：WRE_S-1WR2 (1W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：42mA, 42mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 85°C
• Efficiency：81%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, EN, UKCA
• Standard Number：62368-1
