X1C024000B81H-HV

Crystals Overview

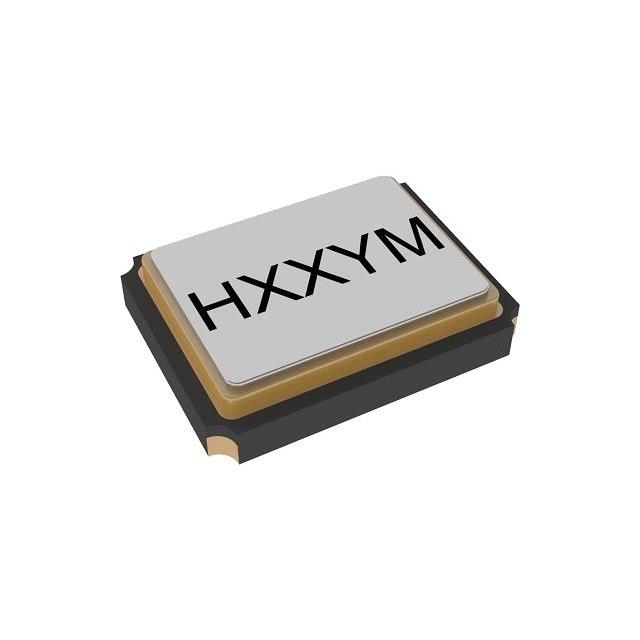

The X1C024000B81H-HV is a quartz crystal resonator manufactured by Harmony Electronics Corp. It operates at a fundamental frequency of 24 MHz with a frequency tolerance of ±10 ppm. The component features a load capacitance of 8 pF and utilizes a 4-SMD, No Lead package configuration. This device is designed for precision timing applications requiring stable oscillation within standard industrial temperature ranges.

Crystals Feature Summary

• Provides precise 24 MHz frequency generation
• Ensures high stability with ±10 ppm tolerance
• Utilizes compact surface-mount packaging

Crystals Applications

• Microcontroller clock sources
• Communication interface circuits
• Digital signal processing systems

Crystals Procurement Notes

Verify the complete part number including suffixes to ensure correct tolerance and package specifications. Confirm that the load capacitance matches the circuit design requirements. Check official datasheets for thermal characteristics and soldering recommendations to guarantee reliable integration into the final assembly process.

Crystals Selection Notes

Select this component when a 24 MHz reference is required with tight frequency accuracy. Ensure the application circuit supports an 8 pF load capacitance. Consider the surface-mount form factor for automated assembly processes and space-constrained board layouts compared to through-hole alternatives.

Crystals Part Context

This crystal belongs to Harmony Electronics' line of quartz frequency components, established since 1976. The company specializes in manufacturing quartz crystals and oscillators for electronic markets. The X1 series represents their standard surface-mount crystal offerings designed for general-purpose timing needs.

Crystals Replacement Considerations

Cross-reference with other 24 MHz SMD crystals having 8 pF load capacitance and ±10 ppm tolerance. Verify pin compatibility and footprint dimensions before substitution. Ensure equivalent frequency stability and operating temperature range specifications are met by any alternative supplier.
