X2C016000B81H-R

Crystals Overview

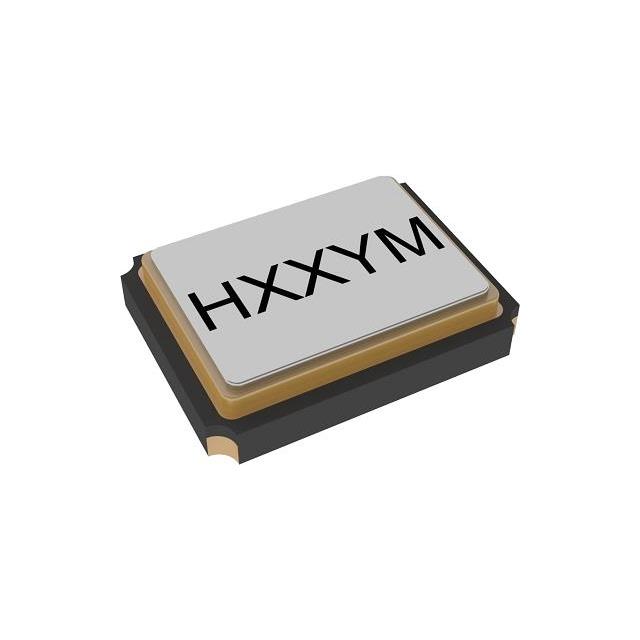

The X2C016000B81H-R is a 16 MHz fundamental mode quartz crystal manufactured by Harmony Electronics Corp. It features a frequency tolerance of ±10ppm and a load capacitance of 8pF. The component has an equivalent series resistance (ESR) of 100 Ohms and operates within a temperature range of -30°C to +85°C. It is housed in a compact 4-SMD, no-lead package with dimensions of 2.0mm x 1.6mm x 0.7mm. The device is RoHS compliant and currently active.

Crystals Feature Summary

• Fundamental mode quartz crystal operation for precise frequency generation
• Compact surface-mount design suitable for space-constrained PCB layouts
• Wide operating temperature range supporting industrial environments

Crystals Applications

• Microcontroller clock sources
• Communication module timing references
• Consumer electronics oscillator circuits

Crystals Procurement Notes

Verify the specific package dimensions and load capacitance requirements against your circuit design before ordering. Ensure that the operating temperature range meets your application's environmental conditions. Confirm RoHS compliance status if required by your supply chain regulations. Check for any specific handling instructions regarding moisture sensitivity levels during assembly.

Crystals Selection Notes

Select this component when a 16 MHz fundamental frequency with ±10ppm stability is required. The 8pF load capacitance must match the oscillator circuit design. Consider the 100 Ohm ESR value for drive level considerations. The -30°C to +85°C range suits general industrial and consumer applications. Compare against other Harmony Electronics models if different frequencies or packages are needed.

Crystals Part Context

This part belongs to the Harmony Electronics crystal family, established in 1976. It is a professional manufacturer of quartz frequency components. The X2C series represents their standard surface-mount crystal offerings. This specific model provides a balance of performance and size for common digital logic applications.

Crystals Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific component. Users should consult official Harmony Electronics documentation for potential cross-references or newer revisions.
