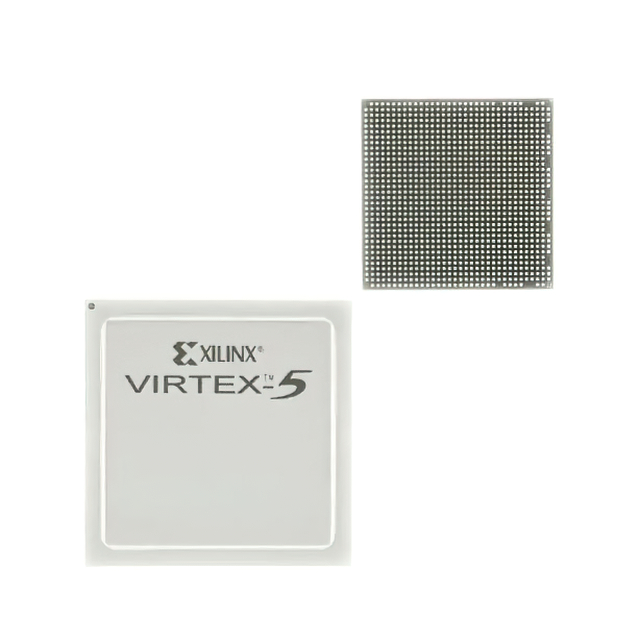

XC5VLX20T-1FFG323C

Field Programmable Gate Array Overview

The XC5VLX20T-1FFG323C is a Field Programmable Gate Array (FPGA) from the AMD/Xilinx Virtex-5 LX platform, manufactured using 65nm copper CMOS technology. It features 20,480 logic elements and 3,200 Adaptive Logic Modules (ALMs), with 1.07 Mbit of embedded memory including 1,080 kbit of Embedded Block RAM (EBR). The device provides 172 I/Os and supports data rates up to 3.75 Gb/s via eight GTX transceivers. Operating at a core voltage of 1.0 V (range 950 mV to 1.05 V), it functions within a commercial temperature range of 0°C to +85°C and is housed in a 323-pin FBGA package.

Field Programmable Gate Array Feature Summary

• Integrates eight high-speed GTX transceivers for serial communication applications.
• Utilizes true 6-input Look-Up Table (LUT) architecture for flexible logic implementation.
• Includes Digital Clock Manager (DCM) and Phase-Locked Loop (PLL) blocks for precise clock management.

Field Programmable Gate Array Applications

• High-performance digital signal processing
• Industrial automation control systems
• Medical imaging equipment

Field Programmable Gate Array Procurement Notes

Verify component authenticity through authorized distributors or official AMD channels. Confirm RoHS compliance status and Moisture Sensitivity Level (MSL) ratings prior to assembly. Ensure storage conditions meet JESD22-A113 standards to prevent damage. Request original manufacturer documentation to validate part number accuracy and revision history.

Field Programmable Gate Array Selection Notes

Select this model when moderate logic density and integrated serial transceivers are required in a compact footprint. Compare against the non-T variant if transceiver resources are unnecessary. Evaluate power consumption profiles against system thermal constraints. Verify that the 323-pin package dimensions align with the target PCB layout requirements.

Field Programmable Gate Array Part Context

This component belongs to the Virtex-5 LX family, designed for general-purpose high-performance logic applications. It shares architectural similarities with other LX devices but offers specific resource scaling. The 'T' suffix indicates the inclusion of GTX transceivers, distinguishing it from standard LX models lacking serial interfaces.

Field Programmable Gate Array Replacement Considerations

Direct pin-compatible substitutes within the same series include XC5VLX20-1FFG323C if transceivers are not utilized. Cross-series migration to Kintex or Artix families requires schematic redesign due to architectural differences.
