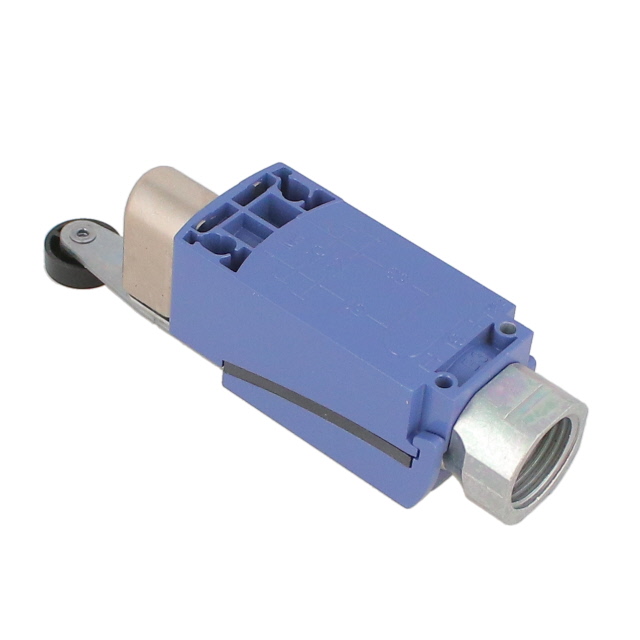

XCKD2145N12

XCKD2145N12 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Telemecanique Sensors. Its product description is SWITCH LIMIT DPDT 3A 240V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for XCKD2145N12

• Description：SWITCH LIMIT DPDT 3A 240V
• Series：XCKD
• Mfr：Telemecanique Sensors
• Package：Box
• Circuit：DPDT (DB/DM)
• Switch Function：On-Mom, Off-Mom
• Current Rating (Amps)：3A (AC), 270mA (DC)
• Voltage Rating - AC：240 V
• Actuator Type：Lever, Roller
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：-
• Features：-
• Operating Force：-
• Release Force：-
• Operating Position：-
• Pretravel：-
• Differential Travel：-
• Overtravel：-
• Operating Temperature：-25°C ~ 70°C
• Voltage Rating - DC：250 V

Limit Switches datasheet and documents for XCKD2145N12
