XZDGK79W

LED Indication - Discrete Overview

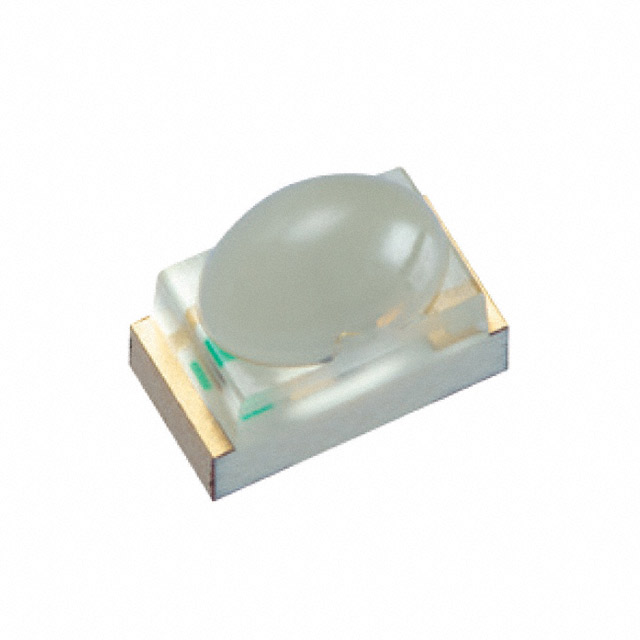

The XZDGK79W is a single-color green light-emitting diode manufactured by SunLED, designed for surface-mount technology applications. It features a clear water lens and emits at a peak wavelength of 515 nm with a dominant wavelength of 525 nm. The device operates with a typical forward voltage of 3.3 V and a test current of 20 mA. It utilizes a 2-SMD, no-lead package configuration with dimensions of 1.60 mm in length and 1.20 mm in width. The maximum height is specified at 0.60 mm, and the viewing angle is 110 degrees.

LED Indication - Discrete Feature Summary

• Utilizes a rectangular lens style with a flat top design for consistent optical distribution.
• Constructed with a clear water lens to maximize light transmission efficiency.
• Designed for right-angle surface mount installation to facilitate compact circuit board layouts.

LED Indication - Discrete Applications

• Status indication in consumer electronic devices
• Indicator lights for medical equipment panels
• Visual signaling in industrial control systems

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized SunLED distributors or certified suppliers. Confirm RoHS compliance status and check for specific packaging variations such as tape and reel quantities. Ensure storage conditions adhere to moisture sensitivity level requirements prior to soldering to maintain device reliability and performance integrity.

LED Indication - Discrete Selection Notes

Select this component when a compact green indicator with a wide viewing angle is required. Consider the 3.3 V forward voltage drop for appropriate driver circuit design. Evaluate the 1.60 mm x 1.20 mm footprint against available PCB space constraints. Compare luminous intensity specifications against ambient lighting conditions to ensure adequate visibility for the intended application environment.

LED Indication - Discrete Part Context

This part belongs to the SunLED SMD LED indicator series, which provides various colors and package sizes for electronics manufacturing. It serves as a visual feedback component within larger electronic assemblies. The product line emphasizes standardization for automated assembly processes while offering diverse optical characteristics to meet different design requirements across multiple industry sectors.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and thermal characteristics before considering any alternative components from other manufacturers.
