XZM2CRK45S

LED Indication - Discrete Overview

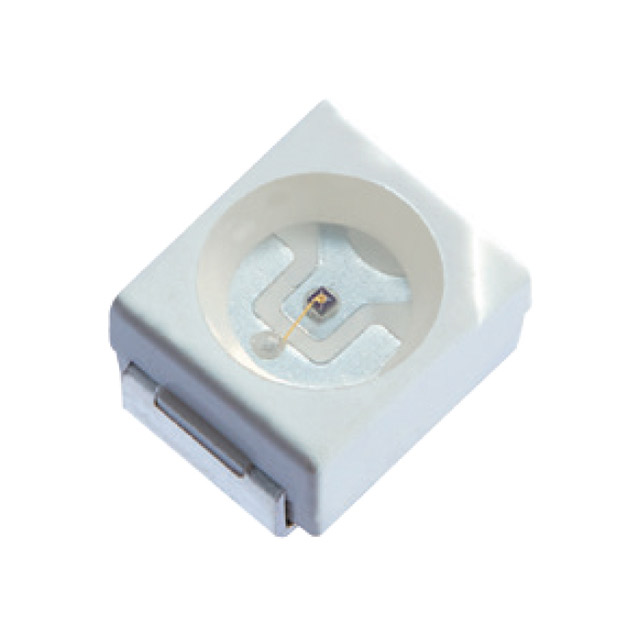

The SunLED XZM2CRK45S is a red surface-mount LED from the NinjaLED series, housed in a 2-PLCC package measuring 3.20mm x 2.80mm x 2.10mm. It features a clear lens with a round flat-top style and a 120° viewing angle. The component emits light at a peak wavelength of 640nm (main 625nm) with a typical forward voltage of 2.2V at a 20mA test current. Intensity reaches 347mcd. It complies with RoHS3 standards and has an MSL rating of 3.

LED Indication - Discrete Feature Summary

• Utilizes a robust 2-PLCC SMD package for reliable surface mounting.
• Features a clear lens with a round flat-top design for optimized light distribution.
• Provides high-intensity red emission suitable for discrete indicator applications.

LED Indication - Discrete Applications

• Electronic device status indicators
• Panel board illumination
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS3 compliance and MSL level 3 handling requirements during storage and assembly. Ensure soldering profiles align with surface-mount specifications to maintain package integrity and optical performance.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard red indicator in a compact 2-PLCC footprint. Consider the 120° viewing angle and 347mcd intensity for visibility needs. Verify that the 2.2V forward voltage matches the driving circuit constraints and thermal management requirements.

LED Indication - Discrete Part Context

This part belongs to SunLED's NinjaLED family, characterized by small form-factor SMD LEDs. The XZM2CRK45S shares dimensional similarities with other variants like XZM2ACR45SB but differs in specific optical parameters and manufacturing status. It represents a standard single-color discrete LED solution within the optoelectronic portfolio.

LED Indication - Discrete Replacement Considerations

The XZM2ACR45SB is listed as an obsolete alternative. For active sourcing, consider the XZM2ACR45S which offers similar 2-PLCC packaging and red emission characteristics while maintaining current production status.
