YECT003AA

Antennas RF Overview

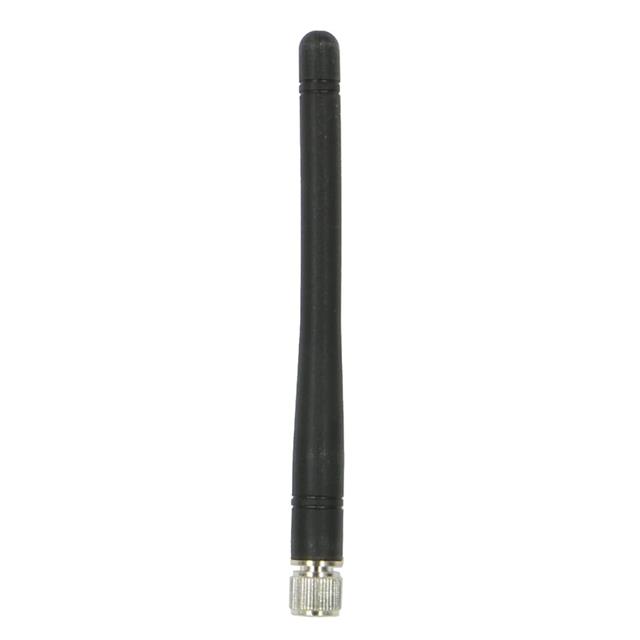

The Quectel YECT003AA is a 4G external terminal mount antenna designed for cellular applications. It operates within a frequency range of 698 MHz to 2.69 GHz, covering main 4G LTE bands and supporting 3G/2G/LPWA compatibility. The antenna features a whip design with an SMA male connector and linear polarization. Key electrical specifications include a gain of 2.5 dBi, an impedance of 50 Ohms, and a VSWR of 4. It is engineered for outdoor use and robust environmental conditions.

Antennas RF Feature Summary

• Supports main 4G LTE bands with backward compatibility for 3G, 2G, and LPWA technologies
• Designed for outdoor terminal mounting with a durable whip form factor
• Equipped with an SMA male connector for straightforward integration

Antennas RF Applications

• 4G LTE cellular terminals
• Outdoor IoT gateways
• Mobile data devices requiring wideband coverage

Antennas RF Procurement Notes

Verify the specific regional band configuration required for your deployment, as cellular standards vary by geography. Confirm that the SMA male connector interface matches your device's RF port. Ensure the antenna's mechanical dimensions and mounting style are compatible with the target terminal housing. Cross-reference the datasheet for precise gain and VSWR values at operational frequencies to validate performance expectations.

Antennas RF Selection Notes

Select this model when wideband cellular support across 2G through 4G is necessary for a single antenna solution. The 2.5 dBi gain provides adequate signal capture for standard outdoor deployments. Consider the 50-ohm impedance match for system efficiency. This antenna is suitable for applications where a compact, externally mounted whip style is preferred over internal PCB solutions.

Antennas RF Part Context

Quectel specializes in cellular IoT antennas and modules, providing components for M2M communication. The YECT003AA belongs to their portfolio of external antennas designed for reliable connectivity in diverse environments. It complements Quectel's modem modules by offering standardized RF interfaces for seamless system integration.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate antennas with similar SMA male connectors, 50-ohm impedance, and overlapping frequency ranges (698 MHz - 2.7 GHz) if replacement is needed.
