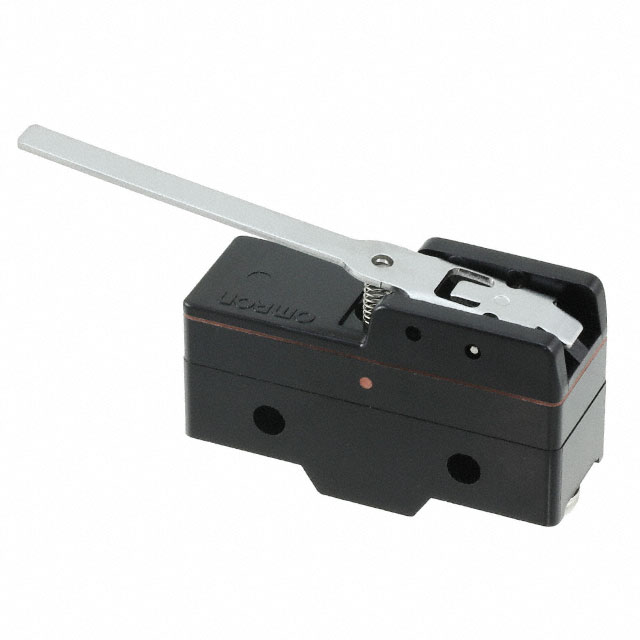

Limit Switches Z-15GW4 product image

Z-15GW4

$19.03

Description：SWITCH SNAP ACTION SPDT 15A 125V
Series：Z
Mfr：Omron Automation and Safety
Package：Bulk

SKU:ac596b90773f Category: Limit Switches Brand: Omron Automation and Safety

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Z-15GW4 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is SWITCH SNAP ACTION SPDT 15A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for Z-15GW4

Description：SWITCH SNAP ACTION SPDT 15A 125V
Series：Z
Mfr：Omron Automation and Safety
Package：Bulk
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：15A (AC), 6A (DC)
Voltage Rating - AC：125 V
Actuator Type：Lever, Straight
Mounting Type：Chassis Mount
Termination Style：Solder Lug
Ingress Protection：IP00
Features：-
Operating Force：28gf
Release Force：3.500gf
Operating Position：0.748" (19.0mm)
Pretravel：0.394" (10.0mm)
Differential Travel：0.050" (1.3mm)
Overtravel：0.219" (5.6mm)
Operating Temperature：-25°C ~ 80°C
Voltage Rating - DC：30 V

Limit Switches datasheet and documents for Z-15GW4

Z-15GW4

Explore related parts through Switches, all product categories, ChipApex homepage.

Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.

Payment Method

Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.

Delivery time

In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.

Freight calculation

Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.

Mode of Transportation

We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.

Return and Refund

Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.
