ZSS-108-05-G-D-940

Headers, Male Pins Overview

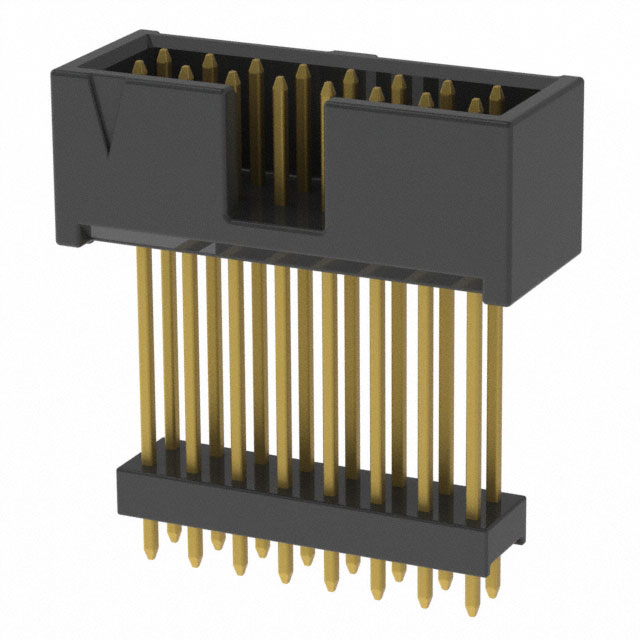

The ZSS-108-05-G-D-940 is a .100" (2.54 mm) pitch shrouded elevated terminal strip from Samtec's Flex Stack series. It features a double-row configuration with 16 positions, designed for through-hole solder termination. The connector utilizes phosphor bronze contacts with gold plating and polyester housing. It supports blind mating applications and offers flexible post height and body position adjustments in increments.

Headers, Male Pins Feature Summary

• Elevated shroud design enables reliable blind mating connections
• Flex Stack architecture allows modified post height and body positioning
• Square post contact system ensures secure board-to-board attachment

Headers, Male Pins Applications

• Blind mating applications requiring precise alignment
• Board-to-board interconnects with variable stack heights
• Automotive A-Series product implementations

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the exact shroud height and body offset dimensions required for your assembly. Confirm RoHS compliance status and material declarations prior to finalizing the bill of materials. Ensure the selected variant matches the intended mating partner specifications for proper engagement.

Headers, Male Pins Selection Notes

Select this component when blind mating capabilities are necessary alongside adjustable vertical spacing. The Flex Stack design accommodates variations in PCB thickness or standoff requirements without custom tooling. Evaluate the available post height increments to determine if standard configurations meet the mechanical clearance needs of the target application.

Headers, Male Pins Part Context

This part belongs to the ZSS series of shrouded elevated terminal strips. It is part of the broader Flex Stack family, which provides customizable solutions for complex interconnect challenges. The series is known for its robust construction and ability to handle misalignment during insertion.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include ZSS-108-04-G-D-812 and ZSS-108-04-G-D-815, though these differ in shroud height specifications. Verify that any alternative maintains the required electrical characteristics and mechanical fit for the existing design.
