ZSS-117-08-G-D-1240

Headers, Male Pins Overview

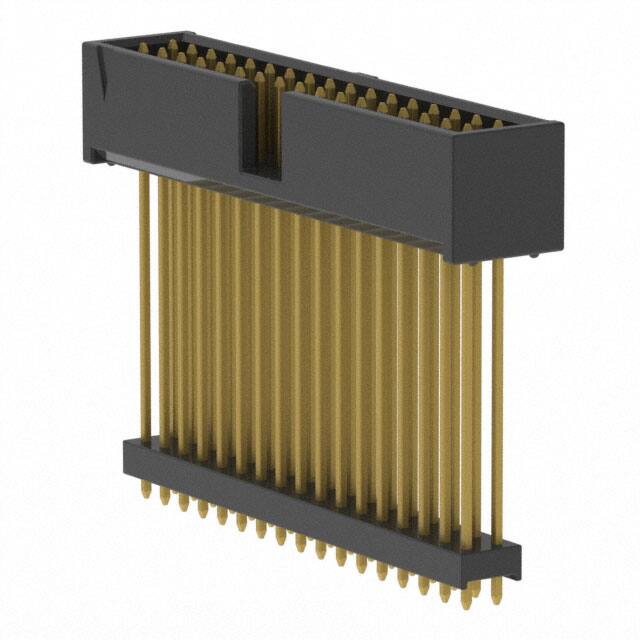

The ZSS-117-08-G-D-1240 is a shrouded PCB header manufactured by Samtec Inc. It features a 34-position configuration arranged in two rows with a 2.54 mm (0.1 inch) pitch. The connector utilizes gold-plated phosphor bronze contacts and a black polyester housing. Designed for through-hole mounting, it offers a straight installation angle and an unlatched closure type. The component operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Shrouded design provides alignment and protection for board-to-board or cable connections
• Gold-plated contacts ensure reliable electrical performance in various environments
• Flexible stacking capability accommodates varying board heights

Headers, Male Pins Applications

• Board-to-Board interconnects
• Cable to Board connections
• General electronic equipment assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Samtec documentation to confirm exact pin length and contact plating specifications. Ensure compatibility with mating connectors regarding pitch and row configuration. Check RoHS compliance status directly from the manufacturer datasheet before procurement. Confirm that the through-hole termination method aligns with the target PCB manufacturing capabilities.

Headers, Male Pins Selection Notes

Select this component when a shrouded, double-row header with a 2.54 mm pitch is required. The 34-position count suits applications needing moderate I/O density. Consider the straight pin style for standard vertical mounting. Verify that the operating temperature range meets the environmental requirements of the final assembly. Ensure the housing material compatibility with soldering processes used in production.

Headers, Male Pins Part Context

This part belongs to the ZSS series of elevated terminal strips from Samtec. These headers are designed for high-reliability applications requiring secure mechanical connection. The series offers various positioning options and contact lengths to fit diverse stack-up requirements. It complements other Samtec interconnect solutions for complete system integration.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Samtec engineering for direct replacements if this specific configuration is unavailable.

Headers, Male Pins FAQ

What is the contact material for this connector?

The contacts are made of phosphor bronze with gold plating.

Does this connector have a latching mechanism?

No, it features an unlatched closure type.
