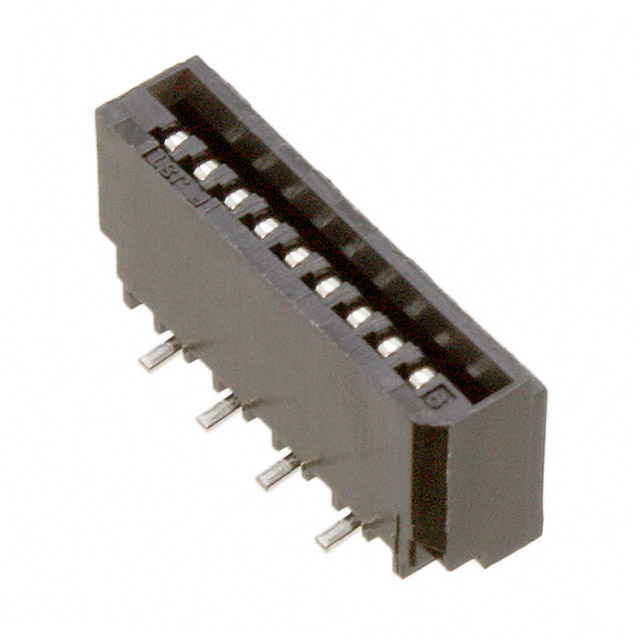

09FMN-BMTTN-A-TF

09FMN-BMTTN-A-TF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists JST Sales America Inc.. Its product description is CONN FFC VERT 9POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 09FMN-BMTTN-A-TF

• Description：CONN FFC VERT 9POS 1MM SMD
• Series：FMN
• Mfr：JST Sales America Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：9
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.201" (5.10mm)
• Locking Feature：-
• Cable End Type：Straight
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Polyamide (PA6T), Nylon 6T
• Actuator Material：-
• Features：Low Insertion Force (LIF)
• Voltage Rating：50V
• Operating Temperature：-25°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 09FMN-BMTTN-A-TF
