1-1969543-6

Headers, Male Pins Overview

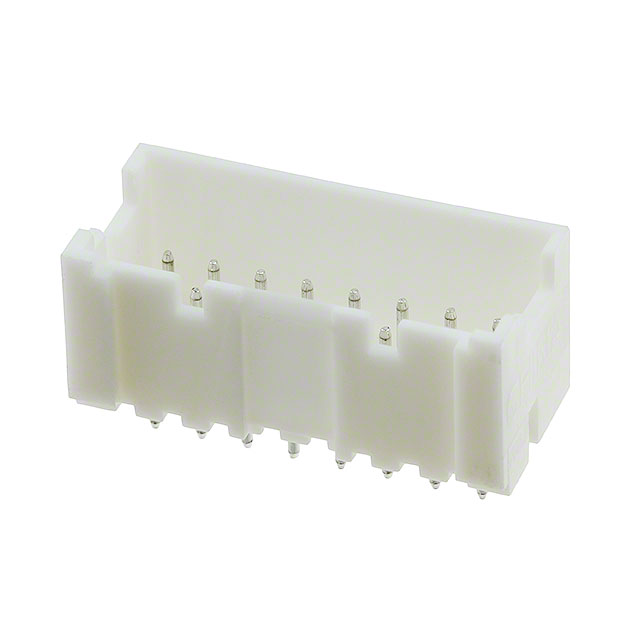

The 1-1969543-6 is a vertical header connector from the Economy Power 2.5 series by TE Connectivity AMP Connectors. It features a 16-position configuration with a 2.5mm pitch. The component is designed for through-hole termination and includes a four-wall shroud for alignment and protection. It utilizes tin-plated phosphor bronze contacts to ensure reliable electrical conductivity. The housing is constructed from thermoplastic material rated UL94 V-0 for flame resistance, supporting operation within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical board-to-board or cable-to-board connection architecture
• Four-wall shroud design for precise mating alignment
• Through-hole solder termination for secure PCB mounting

Headers, Male Pins Applications

• Industrial control system interconnects
• Consumer electronics power distribution
• General purpose circuit board assembly

Headers, Male Pins Procurement Notes

Verify the specific pin count and pitch against the target application requirements before ordering. Confirm that the through-hole footprint on the printed circuit board matches the mechanical dimensions specified in the official datasheet. Ensure compatibility with standard surface-mount reflow profiles if automated assembly is utilized.

Headers, Male Pins Selection Notes

Select this component when a low-profile vertical header with a 2.5mm spacing is required. The Economy Power 2.5 series offers a balance of current carrying capacity and compact form factor. Consider the four-wall shroud feature if enhanced connector retention and misalignment prevention are necessary for the assembly process.

Headers, Male Pins Part Context

This part belongs to the Economy Power 2.5 series, a line of connectors designed for general-purpose power and signal applications. The series is characterized by its 2.5mm pitch and robust thermoplastic housings. TE Connectivity AMP Connectors manufactures these components to meet industry standards for reliability and performance in various electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 16-position count, 2.5mm pitch, and vertical orientation. Verify that alternative headers maintain the same shroud style and termination method to ensure mechanical fit and electrical continuity without redesigning the PCB layout.
