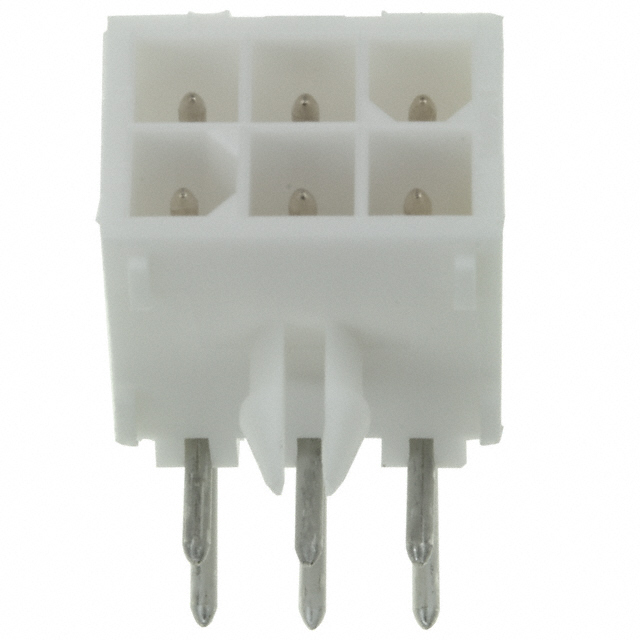

1-770969-1

$3.39

Description：CONN HEADER R/A 6POS 4.14MM
Series：Mini-Universal MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:7dc109aaebe3 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-770969-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 6POS 4.14MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-770969-1

Description：CONN HEADER R/A 6POS 4.14MM
Series：Mini-Universal MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.163" (4.14mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.163" (4.14mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.145" (3.68mm)
Overall Contact Length：-
Insulation Height：0.386" (9.80mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Board Lock
Operating Temperature：-20°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：White
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-770969-1

1-770969-1

Headers, Male Pins Overview

The TE Connectivity AMP Connectors part number 1-770969-1 is a rectangular power connector from the Mini-Universal MATE-N-LOK series. It features a 6-position header with two rows, designed for wire-to-board applications. The connector utilizes a 4.14mm pitch and supports through-hole installation at a right angle. Rated for 600V and 9.5A, it employs brass contacts with gold plating. The housing is constructed from nylon, ensuring UL 94 V-0 flammability compliance.

Headers, Male Pins Feature Summary

Right-angle through-hole mounting configuration
Gold-plated brass contact surfaces
Nylon insulation material

Headers, Male Pins Applications

General industrial equipment interconnects
Commercial power distribution systems
Wire-to-board signal routing

Headers, Male Pins Procurement Notes

Verify component authenticity against official TE Connectivity documentation. Confirm that the specific revision matches project requirements. Check for end-of-life status or alternative sourcing options if availability is constrained. Ensure storage conditions maintain integrity of the gold plating and nylon housing prior to assembly.

Headers, Male Pins Selection Notes

Select this component when a right-angle, two-row header is required for high-current applications up to 9.5A. The 4.14mm pitch accommodates standard wire gauges. Gold plating ensures reliable conductivity in commercial environments. Verify PCB footprint compatibility before finalizing the design integration.

Headers, Male Pins Part Context

This connector belongs to the Mini-Universal MATE-N-LOK family, known for robust rectangular power connections. It complements other series components like 770974-1 and 770174-1, sharing similar structural characteristics but differing in position count and orientation. The series provides standardized interfaces for various industrial needs.
