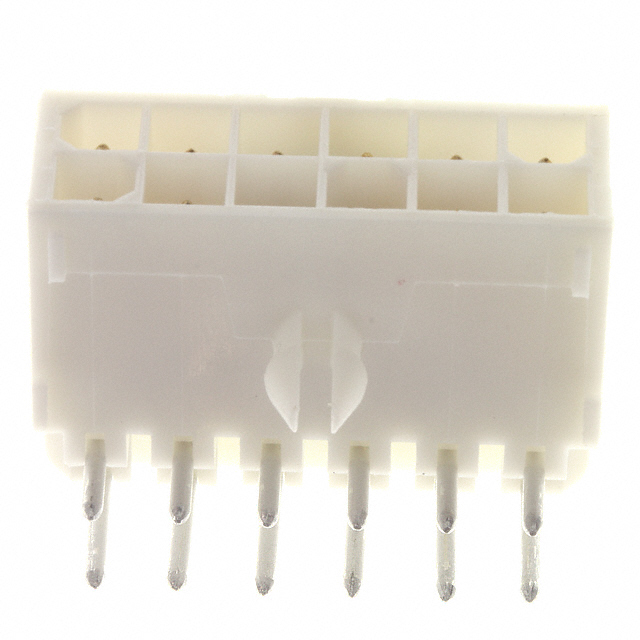

1-770972-1

$9.32

Description：CONN HEADER R/A 12POS 4.14MM
Series：Mini-Universal MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:8740fffabd2b Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-770972-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 12POS 4.14MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-770972-1

Description：CONN HEADER R/A 12POS 4.14MM
Series：Mini-Universal MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.163" (4.14mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.163" (4.14mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.145" (3.68mm)
Overall Contact Length：-
Insulation Height：0.386" (9.80mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Board Lock
Operating Temperature：-20°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：White
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-770972-1

1-770972-1

Headers, Male Pins Overview

The 1-770972-1 is a wire-to-board header connector from the Mini Universal MATE-N-LOK series by TE Connectivity AMP Connectors. It features a right-angle, through-hole mounting style with 12 positions arranged in a single row. The mating pitch is 4.14 mm (0.163 inches). The connector utilizes male pin contacts made of brass with tin-lead plating. The housing is constructed from white polyamide (PA) nylon, rated UL94 V-0 for flammability. It operates within a temperature range of -20°C to 85°C and has a rated voltage of 600VAC.

Headers, Male Pins Feature Summary

Right-angle design facilitates compact board layout integration
Board lock feature ensures secure mechanical retention
Four-wall shrouded housing protects contact alignment

Headers, Male Pins Applications

General purpose electronic interconnects
Industrial equipment wiring
Consumer appliance connections

Headers, Male Pins Procurement Notes

Verify component authenticity against TE Connectivity official documentation. Confirm that the specific ordering suffix matches the required contact plating and housing color specifications. Ensure compatibility with corresponding MATE-N-LOK crimp terminals and insertion tools for proper assembly. Check current lifecycle status as availability may vary.

Headers, Male Pins Selection Notes

Select this connector when a right-angle, 12-position header with a 4.14 mm pitch is required. Ensure the application environment stays within the -20°C to 85°C operating temperature range. Verify that the 600VAC rating meets circuit requirements. Confirm that the through-hole mounting method aligns with the PCB design constraints.

Headers, Male Pins Part Context

This component belongs to the Mini Universal MATE-N-LOK family, known for reliable power and signal transmission. The series offers various position counts and mounting styles. The 1-770972-1 specifically provides a 12-position configuration suitable for moderate density applications requiring robust mechanical locking.
