1-770973-0

Headers, Male Pins Overview

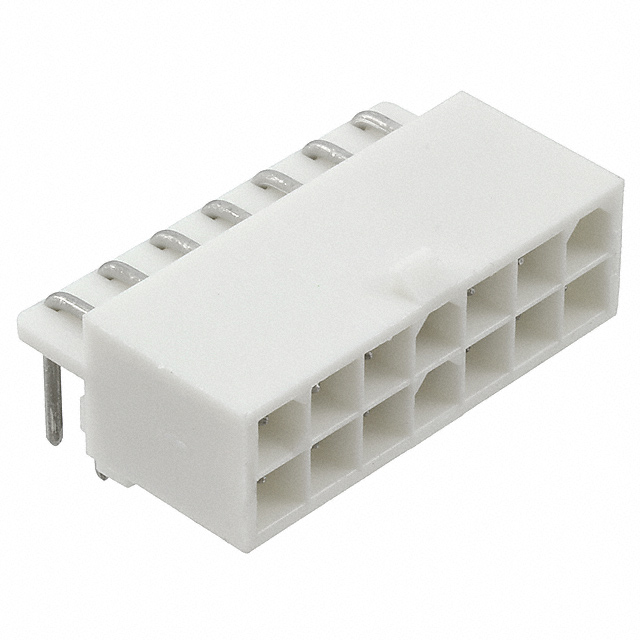

The 1-770973-0 is a pin header connector from the MATE-N-LOK series by TE Connectivity AMP Connectors. It features a dual-row configuration with 14 positions and a 4.14 mm pitch. Designed for right-angle PCB mounting, it utilizes through-hole termination. The housing is white nylon, while contacts are brass with matte tin plating. Rated at 600 V and 9.5 A, it meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Dual-row right-angle header design for compact board-to-cable connections
• Through-hole termination ensures secure PCB attachment
• Matte tin-plated brass contacts provide reliable conductivity
• White nylon housing offers UL 94 V-0 flame resistance

Headers, Male Pins Applications

• Industrial control systems requiring robust power distribution
• General-purpose electronics assembly
• Equipment utilizing MATE-N-LOK mating interfaces

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized TE Connectivity channels or certified distributors. Confirm that the specific part number matches project requirements regarding row count, pitch, and termination style. Request official datasheets to validate electrical ratings and material specifications before integration into final designs.

Headers, Male Pins Selection Notes

Select this component when a dual-row, right-angle header is required for high-current applications up to 9.5 A. Ensure compatibility with mating sockets in the MATE-N-LOK family. Consider the 4.14 mm pitch for spacing constraints and verify that the through-hole footprint aligns with the target PCB layout guidelines.

Headers, Male Pins Part Context

This connector belongs to the MATE-N-LOK product line, a widely used system for power and signal interconnections. The series is known for its reliability in industrial environments. The 1-770973-0 variant specifically addresses needs for angled mounting and dual-row density within standard spacing parameters.

Headers, Male Pins Replacement Considerations

The 770973-1 is a documented similar alternative within the same series. Verify mechanical dimensions and electrical ratings match before substitution.
