1-776087-5

Headers, Male Pins Overview

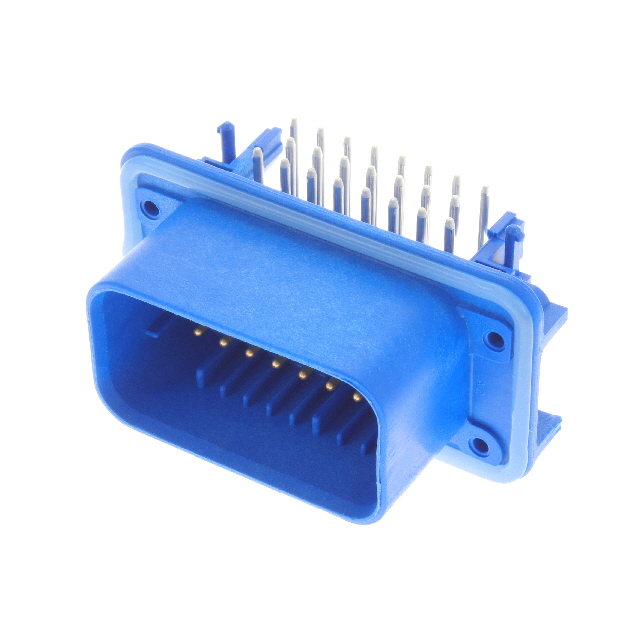

The 1-776087-5 is a rectangular connector header from the AMPSEAL series by TE Connectivity Deutsch Connectors. It features 23 positions with a 4.00mm (0.157 inch) pitch across three rows. Designed for right-angle panel and through-hole mounting, it utilizes male pin contacts made of brass with gold-pallium plating. The housing is constructed from black glass-filled PBT, rated for operating temperatures between -40°C and 125°C. This component supports wire-to-board applications in automotive and industrial environments.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact panel integration
• Gold-pallium plated contacts ensure reliable signal transmission
• Glass-filled PBT insulation provides thermal stability

Headers, Male Pins Applications

• Automotive electronic systems
• Industrial control panels
• Wire-to-board interconnections

Headers, Male Pins Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm contact plating and material specifications. Ensure compatibility with mating housings within the AMPSEAL family. Confirm that the right-angle through-hole mounting style aligns with your PCB layout requirements before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a high-density 23-position connection is required in space-constrained automotive or industrial enclosures. The right-angle configuration allows for efficient board stacking. Verify that the 4.00mm pitch accommodates your trace routing needs and that the brass contact material meets the current carrying requirements of your circuit design.

Headers, Male Pins Part Context

This part belongs to the AMPSEAL series, a widely used family of connectors designed for demanding automotive and industrial applications. The series offers various housing options and contact configurations to support diverse wiring harness and board-level connectivity needs. The 1-776087-5 specifically addresses the need for robust, multi-row connections in harsh environments.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Generic cross-references may not match the specific gold-pallium plating or right-angle mechanical tolerances required for proper mating.
