1-776163-2

$19.25

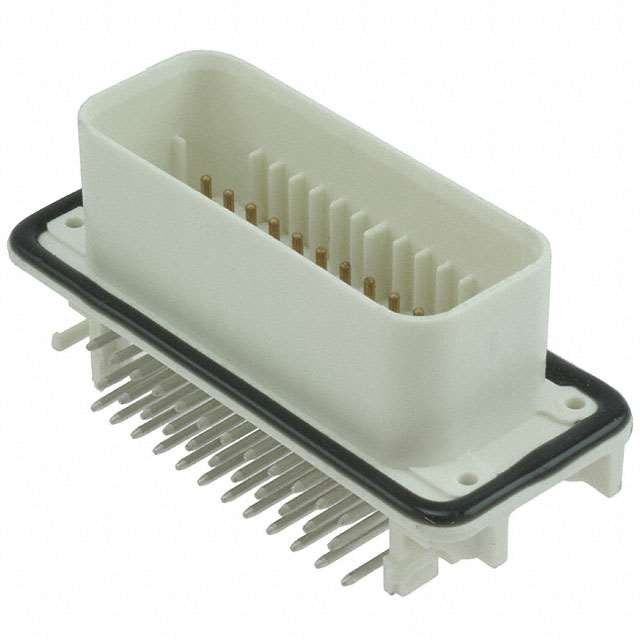

Description：CONN HEADER R/A 35POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:8beae52d8d91 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-776163-2 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 35POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776163-2

Description：CONN HEADER R/A 35POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：35
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Board Guide, Sealed
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776163-2

1-776163-2

Headers, Male Pins Overview

The 1-776163-2 is a male header connector from the AMPSEAL series by TE Connectivity AMP Connectors. It features 35 positions arranged in three rows with a 4.00mm pitch. Designed for panel mount installation using through-hole solder termination, it includes an integrated mounting flange and sealing characteristics. The contacts are made of brass with gold plating, housed in blue glass-filled PBT insulation. Rated for 250VAC and operating temperatures from -40°C to 125°C, this automotive-grade component utilizes pin lock slides for secure mating.

Headers, Male Pins Feature Summary

Provides robust electrical connectivity in automotive and industrial environments
Features sealed construction with integrated mounting flanges
Ensures secure mechanical engagement via pin lock slide retention

Headers, Male Pins Applications

Automotive electronic control units
Industrial sensor interfaces
High-reliability signal distribution systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact contact plating thickness and material specifications. Ensure compatibility with mating housing components such as part number 776164-2. Confirm that the required current rating aligns with the selected wire gauge, as ratings vary based on conductor size.

Headers, Male Pins Selection Notes

Select this component when a high-density, sealed board-to-wire interface is required. The 4.00mm pitch accommodates larger conductors compared to standard signal headers. Consider the panel mount orientation and the need for environmental sealing when designing the enclosure interface. Verify that the locking mechanism meets the vibration requirements of the target application.

Headers, Male Pins Part Context

This connector belongs to the AMPSEAL family, known for durability in harsh conditions. The series supports various pin counts and orientations, offering flexibility for complex wiring harnesses. As a TE Connectivity product, it adheres to strict quality standards for automotive and industrial sectors, ensuring long-term reliability under thermal and mechanical stress.
