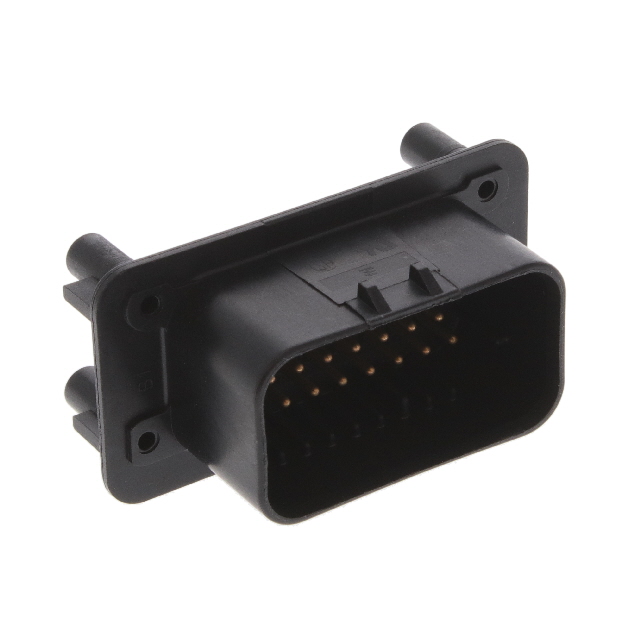

1-776200-1

$12.31

Description：CONN HEADER VERT 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:c3384b597b57 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-776200-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 23POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776200-1

Description：CONN HEADER VERT 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：23
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Mounting Flange, Sealable
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776200-1

1-776200-1

Headers, Male Pins Overview

The TE Connectivity AMP Connectors part number 1-776200-1 is a header assembly belonging to the Ampseal series. It features a vertical orientation with 23 positions arranged in three rows. Designed for panel installation, this connector utilizes a solder termination method and incorporates an IP6K9K ingress protection rating. The housing is constructed from black glass-fiber reinforced polybutylene terephthalate (PBT), while the contacts are made of brass with a tin plating finish.

Headers, Male Pins Feature Summary

Provides high environmental sealing capability through an IP6K9K rated enclosure design suitable for demanding conditions.
Features a robust three-row vertical header configuration optimized for panel mounting applications.
Utilizes a tin-plated brass contact system paired with a durable PBT housing material.

Headers, Male Pins Applications

Automotive electrical systems requiring high ingress protection
Industrial equipment exposed to harsh environmental conditions
Heavy-duty vehicle control modules

Headers, Male Pins Procurement Notes

Verify that the specific variant matches the required pin count and row configuration. Confirm the IP6K9K sealing requirements align with the target application environment. Ensure the panel mounting style and solder termination type are compatible with the assembly process. Cross-reference the housing color and material specifications against design constraints.

Headers, Male Pins Selection Notes

Select this component when high-level environmental sealing is critical for the connection interface. The three-row layout allows for higher density within a constrained vertical footprint. Consider the thermal and chemical resistance properties of the PBT housing for long-term reliability in automotive or industrial settings.

Headers, Male Pins Part Context

This component is part of the Ampseal product line by TE Connectivity AMP Connectors, a widely recognized manufacturer of electronic interconnect solutions. The Ampseal series is specifically engineered for automotive and heavy-duty applications where durability and environmental resistance are paramount.
