1-776262-1

Headers, Male Pins Overview

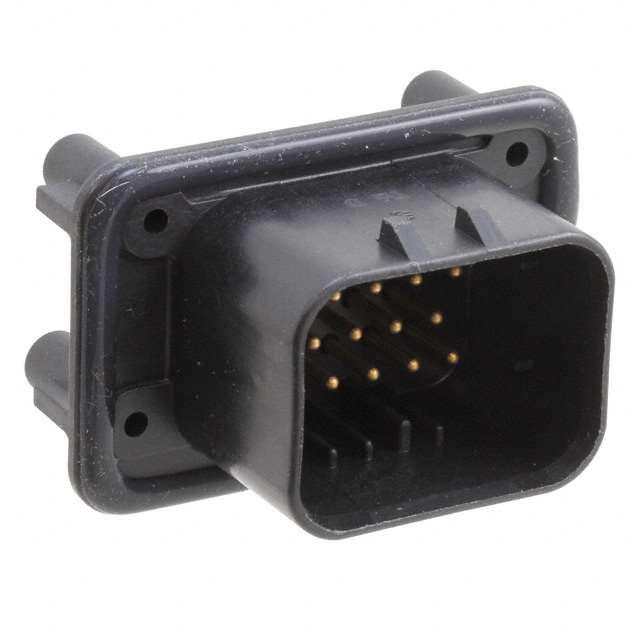

The 1-776262-1 is a vertical header connector from the AMPSEAL series, manufactured by TE Connectivity AMP Connectors. It features 14 positions with a 0.157-inch (4.00mm) mating pitch and utilizes three rows of male pin contacts. Designed for through-hole termination, this component incorporates a gold-palladium contact surface finish to ensure reliable signal transmission. The housing is constructed from glass-filled polybutylene terephthalate (PBT), providing structural integrity and compliance with UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Incorporates a sealed design with an integrated mounting flange to protect against environmental contaminants.
• Features a positive lock mechanism utilizing slide-lock pins to secure mating connections firmly.
• Constructed with a four-wall shielded housing configuration to enhance electromagnetic interference protection.

Headers, Male Pins Applications

• Automotive electronic systems requiring robust interconnects
• Industrial control modules and machinery interfaces
• Wire-to-board power and signal distribution networks

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required three-row configuration and 14-position count. Confirm that the gold-palladium contact finish aligns with the intended application's conductivity requirements. Ensure the through-hole mounting style is compatible with the target printed circuit board layout and soldering process specifications.

Headers, Male Pins Selection Notes

Select this connector when a sealed, high-reliability automotive-grade header is required. The AMPSEAL series offers superior sealing capabilities compared to standard headers. Consider the 4.00mm pitch for spacing constraints and verify that the operating temperature range meets the environmental conditions of the deployment site.

Headers, Male Pins Part Context

This component belongs to the AMPSEAL product family, which is widely recognized for its durability in harsh environments. The series provides various configurations including straight and right-angle headers, catering to diverse assembly needs within the automotive and industrial sectors while maintaining consistent performance standards.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity documentation for verified cross-reference part numbers. Do not substitute with generic equivalents without confirming mechanical dimensions and electrical ratings match exactly.

Headers, Male Pins FAQ

What is the contact material used in the 1-776262-1?

The contacts are made of brass with a gold-palladium surface finish to optimize conductivity and corrosion resistance.

Does this connector support panel mounting?

Yes, the 1-776262-1 supports both panel mounting and through-hole installation styles.
