1-776276-2

Headers, Male Pins Overview

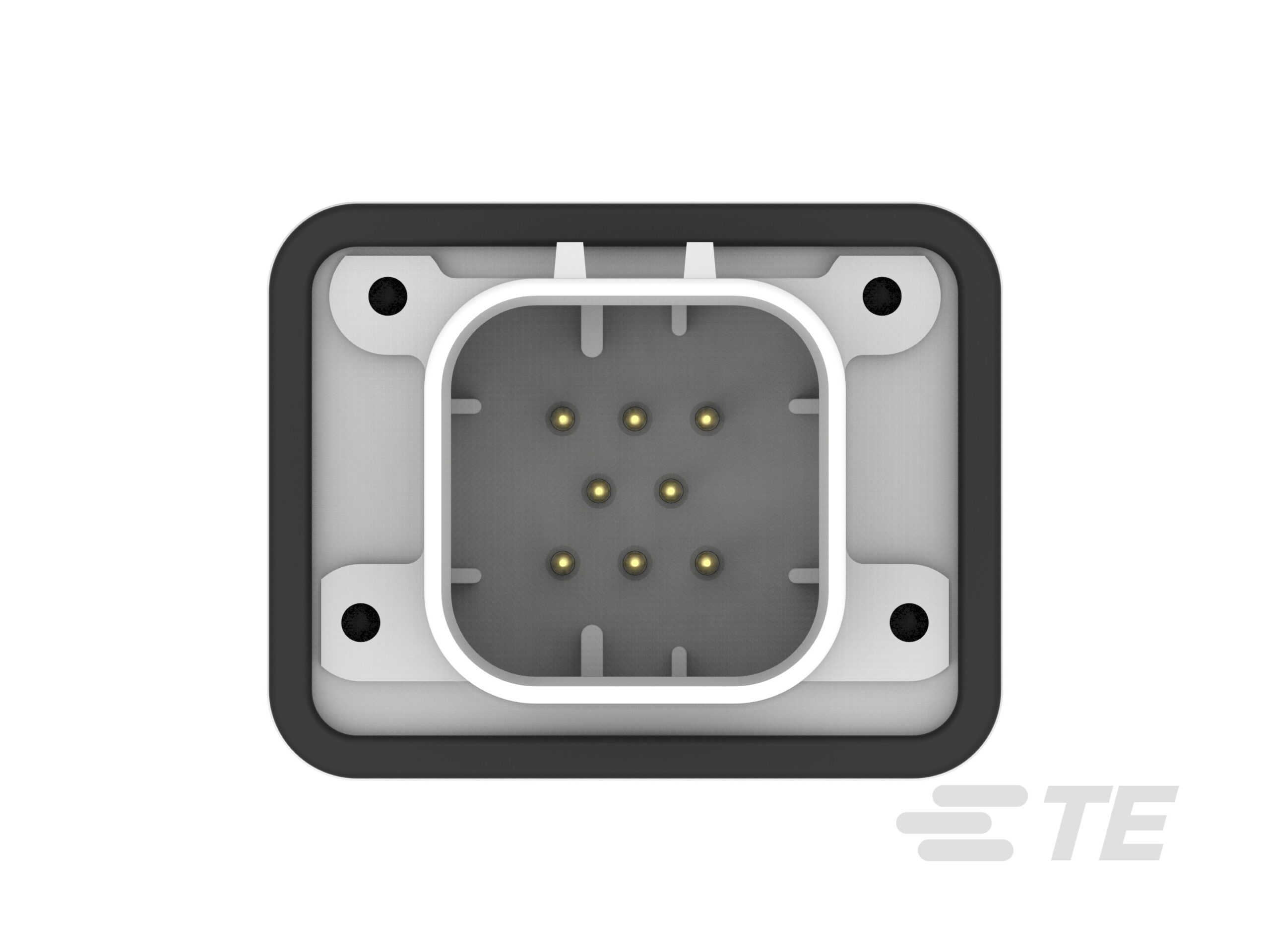

The 1-776276-2 is an automotive header assembly from the TE Connectivity AMPSEAL series. It features 8 positions with a 4 mm pitch and utilizes vertical through-hole solder termination. The connector employs tin-plated pin contacts and is designed for wire-to-board or device applications. It offers IP67 and IP69K ingress protection ratings, ensuring reliability in harsh environments. The unit operates within a temperature range of -40°C to +105°C and carries UL 94 V-0 flammability classification.

Headers, Male Pins Feature Summary

• Provides robust environmental sealing with IP67 and IP69K ingress protection ratings suitable for demanding automotive conditions.
• Features a vertical through-hole mounting style with solder termination for secure PCB integration.
• Utilizes tin-plated contacts to ensure reliable electrical performance in power and signal transmission applications.

Headers, Male Pins Applications

• Automotive electronic systems requiring high durability
• Wire-to-board interconnections in vehicle control modules
• Harsh environment signal and power distribution

Headers, Male Pins Procurement Notes

Verify the specific suffix and contact plating configuration against project requirements. Confirm that the IP67/IP69K rating aligns with the intended environmental exposure. Ensure the vertical orientation and through-hole soldering method match the PCB layout constraints. Cross-reference the AMPSEAL series mating components to guarantee mechanical compatibility.

Headers, Male Pins Selection Notes

Select this component when high ingress protection is critical for automotive PCB assemblies. The 4 mm pitch accommodates higher current capacities compared to finer pitches. The vertical form factor simplifies board stacking. Verify thermal resistance capabilities against the specific application's heat dissipation needs.

Headers, Male Pins Part Context

This part belongs to the AMPSEAL family, known for heavy-duty reliability in automotive and industrial sectors. The series provides modular solutions with color coding and sealing options. It supports both straight and angled configurations for diverse system integration needs.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Generic automotive headers may not match the specific IP69K sealing or AMPSEAL locking mechanisms required for this application.

Headers, Male Pins FAQ

What is the contact plating material for this connector?

The contacts are plated with tin to provide reliable conductivity and corrosion resistance.

Does this connector support high-pressure washing?

Yes, it meets IP69K standards, allowing it to withstand high-pressure and high-temperature water jets.
