1-776280-1

Headers, Male Pins Overview

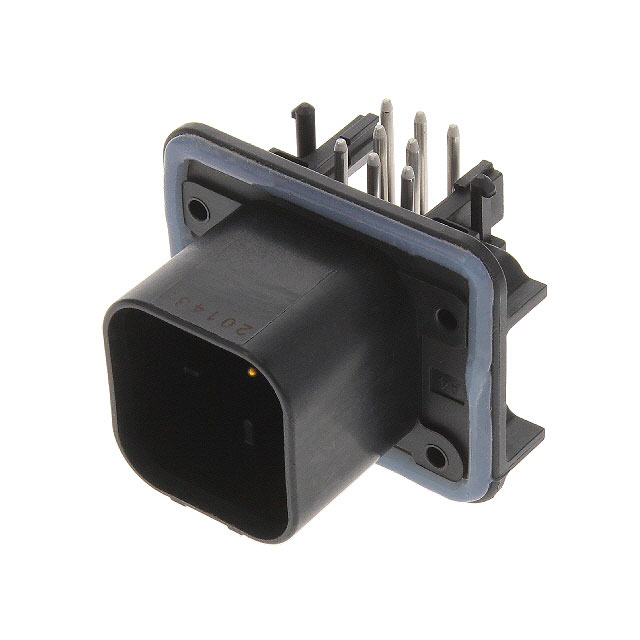

The TE Connectivity Deutsch Connectors part number 1-776280-1 is an automotive connector from the Ampseal series. It features a male header configuration with eight contacts arranged in three rows. The unit utilizes a panel mount installation type and employs solder termination for PCB connection. Constructed with a black housing made of glass-filled polybutylene terephthalate, it offers an IP6K9K ingress protection rating. The operating temperature range spans from -40°C to 125°C. Contact materials consist of brass with gold plating. Physical dimensions include a depth of 37.9mm, width of 40.8mm, and height of 32.1mm.

Headers, Male Pins Feature Summary

• Provides high ingress protection against dust and high-pressure water jets via IP6K9K rating
• Ensures reliable electrical contact through gold-plated brass terminals
• Supports secure panel mounting for stable mechanical integration

Headers, Male Pins Applications

• Automotive electronic systems requiring robust environmental sealing
• Industrial control panels exposed to harsh cleaning processes
• Heavy-duty equipment interfaces demanding high reliability

Headers, Male Pins Procurement Notes

Verify the specific contact plating material against official datasheets, as sources indicate variations between gold and tin finishes for similar identifiers. Confirm the exact operating temperature limits and compliance certifications such as EU RoHS prior to procurement. Ensure the selected variant matches the required panel mount orientation and terminal termination method for the target application.

Headers, Male Pins Selection Notes

Select this component when a compact, multi-row header is needed for panel-mounted applications. The three-row layout optimizes space efficiency while maintaining signal integrity. Consider the IP6K9K rating if the environment involves high-pressure washdowns or extreme dust exposure. Validate that the solder termination method aligns with the assembly process capabilities.

Headers, Male Pins Part Context

This component belongs to the Ampseal family, known for durability in automotive and industrial sectors. It serves as a critical interface point for connecting wiring harnesses to printed circuit boards. The design emphasizes resistance to vibration, moisture, and chemical exposure, ensuring long-term performance in demanding operational conditions.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with mating connectors within the same Ampseal series before considering alternatives.
