1-776280-2

Headers, Male Pins Overview

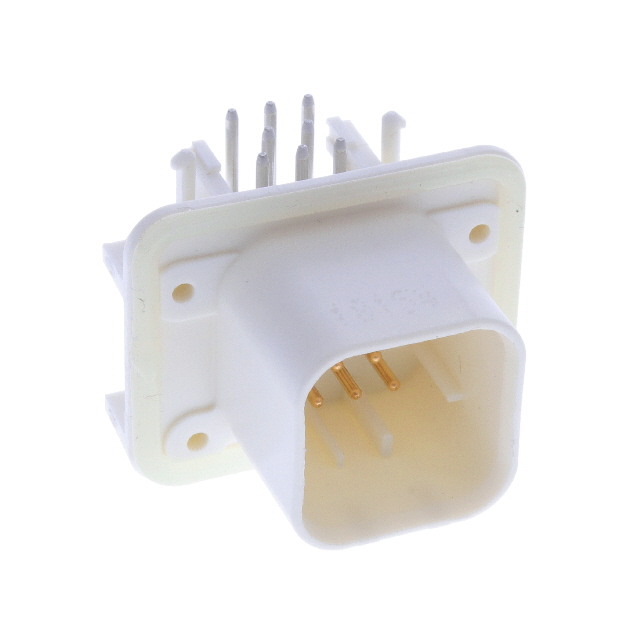

The 1-776280-2 is an AMP Automotive Header connector manufactured by TE Connectivity. It features a right-angle, wire-to-board configuration with 8 positions arranged in a 3-row layout. The connector utilizes a 4mm (0.157 inch) centerline pitch and employs gold contact plating for enhanced conductivity and corrosion resistance. Designed for printed circuit board installation via panel mount or through-hole methods, this sealable header supports reliable signal transmission in automotive applications.

Headers, Male Pins Feature Summary

• Sealable design ensures environmental protection against moisture and contaminants
• Gold-plated contacts provide superior electrical performance and durability
• Right-angle orientation facilitates compact PCB routing and assembly

Headers, Male Pins Applications

• Automotive electronic control units
• Vehicle sensor interfaces
• In-car communication systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm pin count, row configuration, and plating thickness. Ensure the selected variant matches the required sealability and mounting style for the target PCB design. Cross-reference the manufacturer datasheet for precise mechanical dimensions and mating partner compatibility before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a robust, sealed interconnect solution is required for automotive environments. The right-angle form factor aids in space-constrained layouts, while the gold plating ensures long-term reliability. Confirm that the 4mm pitch aligns with the system's wiring harness and PCB trace requirements.

Headers, Male Pins Part Context

This part belongs to the AMPSEAL series of automotive headers, known for their rugged construction and sealing capabilities. The AMP brand, now part of TE Connectivity, has a long history of providing reliable interconnect solutions for harsh environments, dating back to its founding in 1941.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Consult TE Connectivity technical support for potential obsolescence management or alternative series recommendations if this part is discontinued.
