1-794071-0

Headers, Male Pins Overview

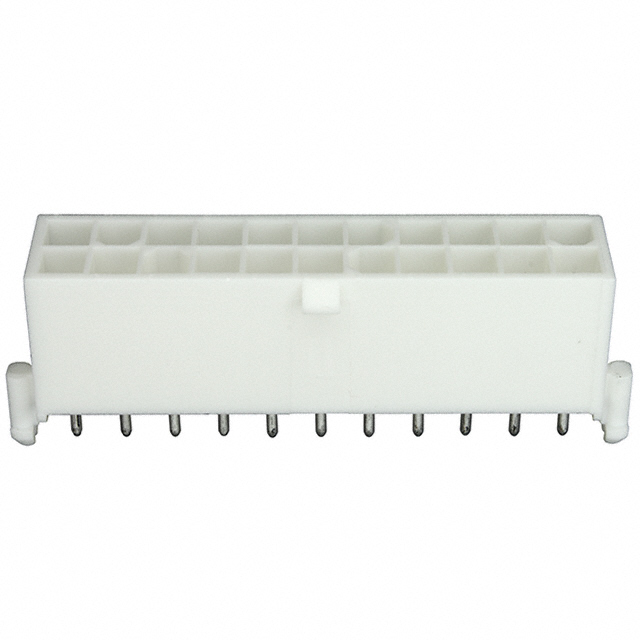

The 1-794071-0 is a male header connector from the Mini-Universal MATE-N-LOK series by TE Connectivity AMP Connectors. It features 22 positions arranged in a dual-row configuration with a 4.14mm pitch. Designed for through-hole PCB mounting, this component utilizes phosphor bronze contacts plated with tin to ensure reliable electrical performance. The housing is constructed from nylon, providing structural integrity and compliance with UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Dual-row vertical pin header design for high-density circuit connections
• Through-hole termination method ensures secure PCB attachment
• Tin-plated phosphor bronze contacts provide corrosion resistance

Headers, Male Pins Applications

• Industrial control systems requiring robust signal transmission
• Consumer electronics utilizing Mini-Universal MATE-N-LOK mating interfaces
• General-purpose printed circuit board interconnections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official TE Connectivity documentation to confirm plating type and housing variations. Ensure compatibility with the intended mating socket within the Mini-Universal MATE-N-LOK family. Cross-reference the part number with current manufacturer status to avoid obsolete components during procurement.

Headers, Male Pins Selection Notes

Select this component when a 22-position, 4.14mm pitch header is required for vertical PCB mounting. Confirm that the application environment aligns with the thermal and mechanical ratings of the nylon housing. Validate that the mating connector belongs to the compatible Mini-Universal MATE-N-LOK series to ensure proper engagement.

Headers, Male Pins Part Context

This connector belongs to the Mini-Universal MATE-N-LOK series, a widely used line of power and signal connectors known for their reliability. The series supports various contact counts and configurations, making it suitable for diverse applications ranging from automotive to industrial machinery where secure interconnection is critical.

Headers, Male Pins Replacement Considerations

Consult TE Connectivity official databases for direct substitutes or updated versions of the 1-794071-0 part number. Verify dimensional and electrical compatibility before replacing with alternative manufacturers' products.
