1-794074-0

Headers, Male Pins Overview

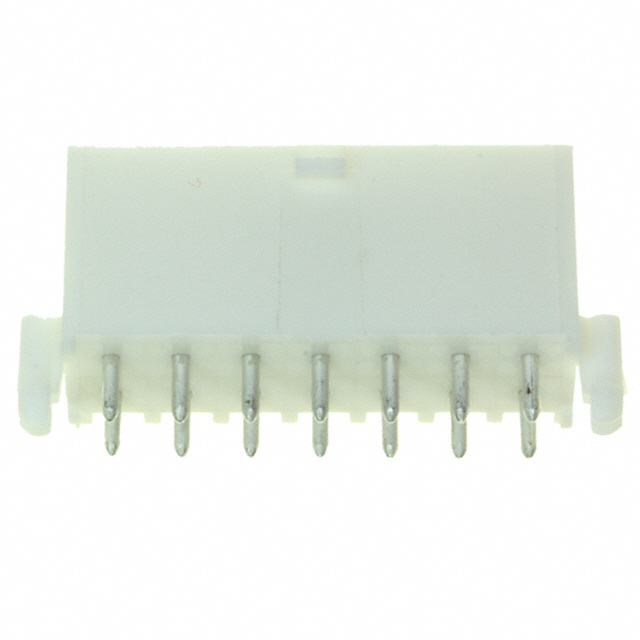

The 1-794074-0 is a pin and socket connector header manufactured by TE Connectivity / AMP. It belongs to the MATE-N-LOK series and features a dual row configuration with 14 positions. The connector utilizes male pins with tin-plated brass contacts and supports through-hole mounting with solder termination. It has a pitch of 4.14 mm (0.163 inches). The housing is white, vertically mounted, and rated UL 94 V-0 for flammability.

Headers, Male Pins Feature Summary

• Dual row header design with 14 positions
• Tin-plated brass contact material
• Through-hole solder termination
• Vertical mounting orientation

Headers, Male Pins Applications

• Computer systems
• Peripheral equipment
• Business machines
• Appliances

Headers, Male Pins Procurement Notes

Verify the specific datasheet version for the 1-794074-0 part number before procurement. Confirm that the 4.14 mm pitch and 14-position dual row configuration match the target PCB footprint. Ensure the vertical mounting angle and through-hole solder termination are compatible with the assembly process. Cross-reference the UL 94 V-0 rating if fire safety compliance is required for the end application.

Headers, Male Pins Selection Notes

Select this component when a robust, high-current capable header is needed for general-purpose interconnects. The MATE-N-LOK series offers reliable performance in commercial and industrial environments. Consider the 4.14 mm pitch for spacing requirements and the tin-plated brass contacts for cost-effective conductivity. Verify compatibility with mating sockets from the same series.

Headers, Male Pins Part Context

This connector is part of the extensive MATE-N-LOK product line by TE Connectivity, known for its versatility in power and signal applications. The brand has a long history in connector manufacturing, dating back to 1941. This specific model represents a standard through-hole solution suitable for various electronic assemblies requiring durable connections.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult TE Connectivity technical support for potential alternatives if this specific 14-position variant is unavailable.
