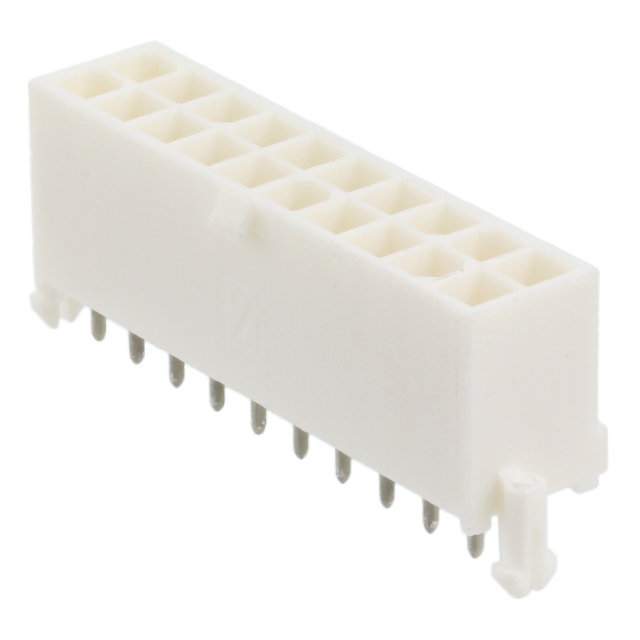

1-794077-1

1-794077-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 20POS 4.14MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794077-1

• Description：CONN HEADER VERT 20POS 4.14MM
• Series：Mini-Universal MATE-N-LOK
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.163" (4.14mm)
• Number of Positions：20
• Number of Rows：2
• Row Spacing - Mating：0.163" (4.14mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：-
• Contact Length - Post：0.175" (4.45mm)
• Overall Contact Length：-
• Insulation Height：0.531" (13.50mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyamide (PA), Nylon
• Features：Board Lock
• Operating Temperature：-20°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：White
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-794077-1
