1-794105-0

Headers, Male Pins Overview

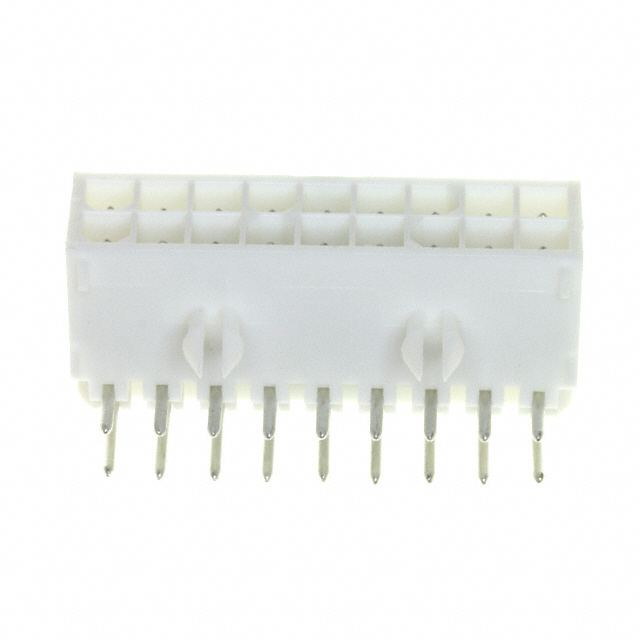

The TE Connectivity AMP Connectors part number 1-794105-0 is a right-angle header connector belonging to the Mini-Universal MATE-N-LOK series. It features a dual-row configuration with 18 positions and a mating pitch of 0.163 inches (4.14 mm). Designed for through-hole mounting, this component utilizes brass contacts with tin plating on both the mating surface and the post, each measuring 150.0 µin (3.81 µm) in thickness. The housing is constructed from white polyamide (nylon) rated UL94 V-0 for flammability. It supports a maximum voltage of 600VAC and operates within a temperature range of -20°C to 85°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting style facilitates compact board layout integration.
• Dual-wall shielding provides robust mechanical protection for the contact array.
• Board lock feature ensures secure attachment to the printed circuit board.
• Slide-lock fastening type enables reliable mating engagement.

Headers, Male Pins Applications

• General purpose electronic interconnections
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official TE Connectivity documentation to confirm exact packaging and terminal specifications. Ensure compatibility with corresponding socket contacts for the Mini-Universal MATE-N-LOK series. Confirm that the required current rating aligns with the wire gauge used in the application, as ratings vary by conductor size. Check for any recent product change notifications regarding material or manufacturing updates.

Headers, Male Pins Selection Notes

Select this header when a right-angle, dual-row connection is required for space-constrained designs. The 4.14 mm pitch offers a balance between density and ease of handling. Verify that the PCB hole pattern matches the specified pin spacing and that the board thickness accommodates the through-hole termination. Consider the operating temperature range and voltage rating to ensure compliance with the target application's environmental and electrical requirements.

Headers, Male Pins Part Context

This component is part of the Mini-Universal MATE-N-LOK family, a widely utilized line of rectangular connectors known for their versatility and reliability. The series supports various contact configurations and housing sizes, making it suitable for diverse industrial and commercial applications. The 1-794105-0 specifically addresses needs for angled connections while maintaining the standard mechanical interface of the MATE-N-LOK ecosystem.

Headers, Male Pins Replacement Considerations

Consult official cross-reference guides for compatible alternatives. No direct substitute part numbers are confirmed in public documentation.
