1-794448-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER R/A 6POS 4.2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794448-1

Description：CONN HEADER R/A 6POS 4.2MM
Series：AMP-DUAC
Mfr：TE Connectivity AMP Connectors
Package：Bulk,Box
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.394" (10.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：150.0µin (3.81µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA), Nylon
Features：Board Lock
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-2
Insulation Color：Natural
Current Rating (Amps)：-
Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-794448-1

1-794448-1

Headers, Male Pins Overview

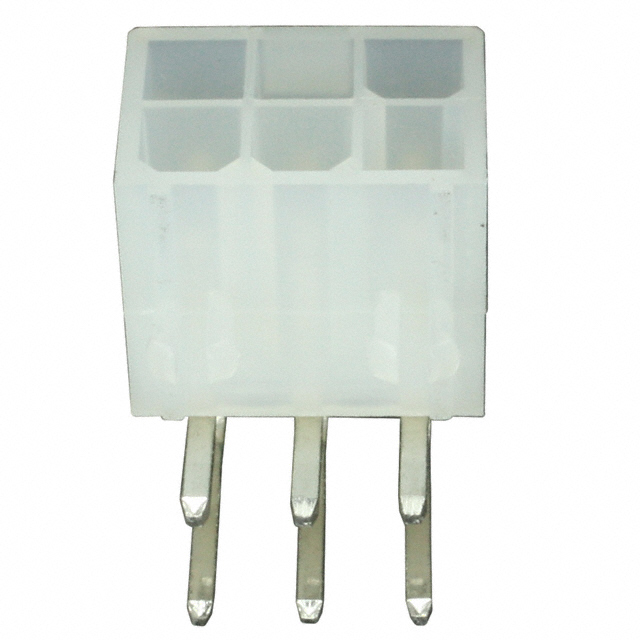

The 1-794448-1 is a rectangular connector header from the AMPDUAC series by TE Connectivity. It features a right-angle, through-hole mounting style with 6 positions and a 4.20 mm pitch. The housing is designed for male pin contacts, providing a secure connection interface. This component is classified as obsolete and is no longer manufactured by the producer.

Headers, Male Pins Feature Summary

Right-angle PCB mounting configuration
Through-hole termination method
Male pin contact interface

Headers, Male Pins Applications

Headers, Male Pins Procurement Notes

This part number is officially marked as obsolete and no longer in production. Procurement must focus on identifying verified public substitute part numbers or alternative components that meet the required electrical and mechanical specifications. Direct ordering from the manufacturer is not possible.

Headers, Male Pins Selection Notes

Designers should evaluate current available alternatives due to the discontinued status of this specific model. Selection criteria must prioritize matching the original 4.20 mm pitch, 6-position count, and right-angle orientation to ensure compatibility with existing board layouts and mating hardware requirements.

Headers, Male Pins Part Context

The 1-794448-1 belongs to the AMPDUAC series of headers produced by TE Connectivity AMP Connectors. These connectors are characterized by their robust construction and reliable performance in various electronic assemblies, though this specific variant has reached its end-of-life stage within the product lifecycle.

Headers, Male Pins Replacement Considerations

As the 1-794448-1 is obsolete, users must consult official substitution guides from TE Connectivity. Valid replacement strategies involve selecting equivalent right-angle headers with identical 4.20 mm pitch and 6-position configurations to maintain system integrity.
