1-794486-1

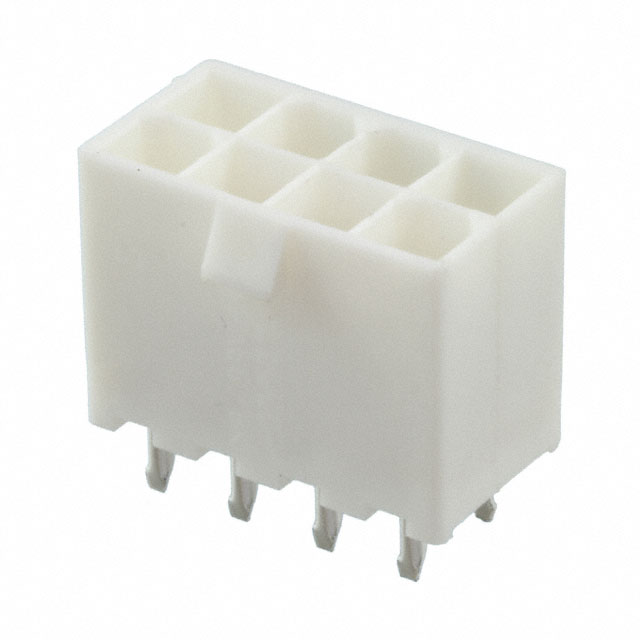

Description：CONN HEADER VERT 8POS 4.2MM
Series：AMP-DUAC
Mfr：TE Connectivity AMP Connectors
Package：Box

SKU:3ad6550aaf1d Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-794486-1 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 8POS 4.2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794486-1

Description：CONN HEADER VERT 8POS 4.2MM
Series：AMP-DUAC
Mfr：TE Connectivity AMP Connectors
Package：Box
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：118.1µin (3.00µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA), Nylon
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：-
Voltage Rating：600VAC

Headers, Male Pins datasheet and documents for 1-794486-1

1-794486-1

Headers, Male Pins Overview

The TE Connectivity AMP Connectors part number 1-794486-1 is a rectangular connector housing belonging to the MATE-N-LOK series. It is designed as a plug housing with two rows and features a total of 24 positions. The connector utilizes a pitch spacing of 0.163 inches (4.14 mm). Constructed from polyamide (nylon) insulation, it is rated for a maximum voltage of 600 VAC and operates within a temperature range of -55°C to 105°C. The housing employs a pin lock securing mechanism and is intended for free-hanging installation. Contact termination is achieved via crimping, with contacts sold separately.
