1-794618-6

Headers, Male Pins Overview

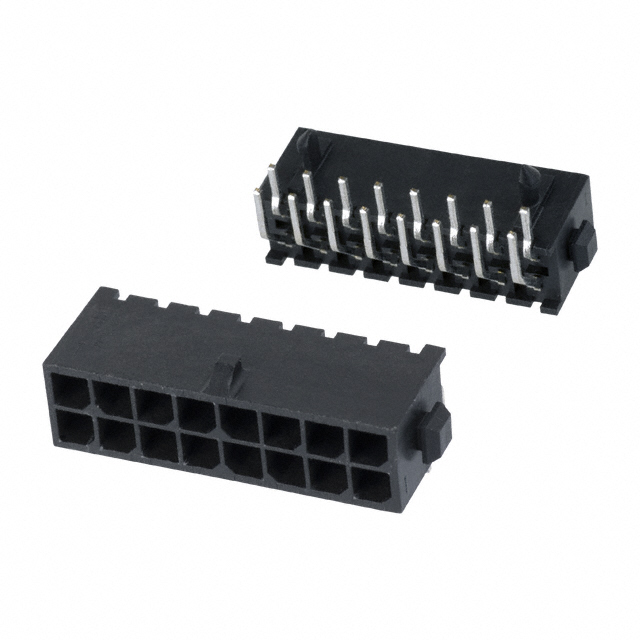

The TE Connectivity AMP Connectors part number 1-794618-6 is a rectangular header connector belonging to the Micro MATE-N-LOK series. It features a dual-row configuration with 16 positions and a pitch of 0.118 inches (3.00mm). The connector utilizes a through-hole termination style for PCB mounting and includes right-angle orientation. The housing is constructed from black nylon material, providing shrouded walls on four sides to ensure proper alignment and protection during mating.

Headers, Male Pins Feature Summary

• Dual-row pin header design for board-to-cable or wire applications
• Shrouded four-wall housing structure for secure mating alignment
• Right-angle orientation facilitates compact circuit board layout
• Through-hole termination method ensures robust mechanical fixation

Headers, Male Pins Applications

• General-purpose board-to-cable interconnections
• Wire-to-board assembly in industrial equipment
• Consumer electronics internal wiring harnesses
• Control panel signal distribution systems

Headers, Male Pins Procurement Notes

Verify that the specific suffix '6' corresponds to the required tin plating and packaging configuration as defined by the manufacturer's current documentation. Confirm compatibility with corresponding socket housings within the same Micro MATE-N-LOK series to ensure correct polarity and mating force characteristics before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a right-angle, dual-row header is required for rigid PCB mounting. Ensure the application environment remains within standard operating temperature limits compatible with nylon insulation. Verify that the target PCB footprint matches the 3.00mm pitch and dual-row spacing requirements specified for this series.

Headers, Male Pins Part Context

This connector is part of the extensive Micro MATE-N-LOK family produced by TE Connectivity. The series is widely recognized for its reliability in general-purpose electrical connections. The 1-794618-6 variant specifically addresses needs for angled mounting configurations while maintaining the standard 16-position capacity and 3.00mm spacing characteristic of the broader product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include other manufacturers offering equivalent 16-position, 3.00mm pitch, right-angle headers with through-hole termination. Cross-reference mechanical dimensions and mating interface geometry to ensure interchangeability without modifying existing PCB layouts or cable assemblies.
