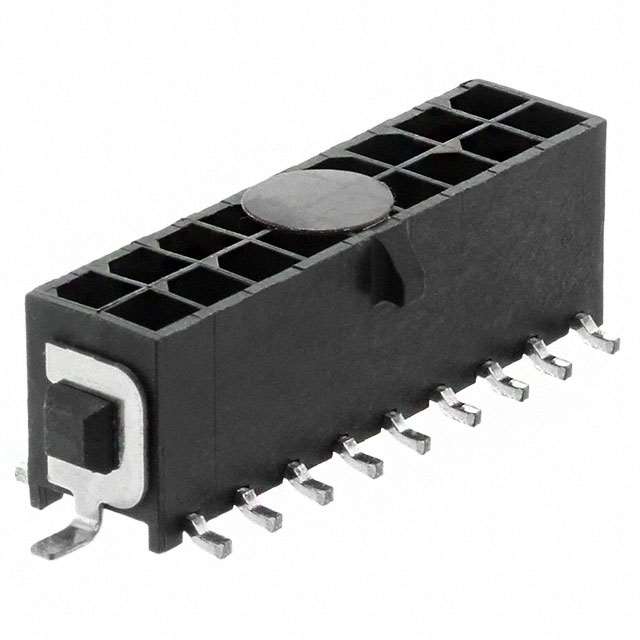

1-794637-8

1-794637-8 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER SMD 18POS 3MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794637-8

• Description：CONN HEADER SMD 18POS 3MM
• Series：Micro MATE-N-LOK
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk,Box
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.118" (3.00mm)
• Number of Positions：18
• Number of Rows：2
• Row Spacing - Mating：0.118" (3.00mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.364" (9.25mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold or Gold-Palladium
• Contact Finish Thickness - Mating：15.0µin (0.38µm)
• Contact Finish - Post：Tin-Lead
• Contact Material：Brass
• Insulation Material：Polyamide (PA), Nylon
• Features：Solder Retention
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：250V

Headers, Male Pins datasheet and documents for 1-794637-8
