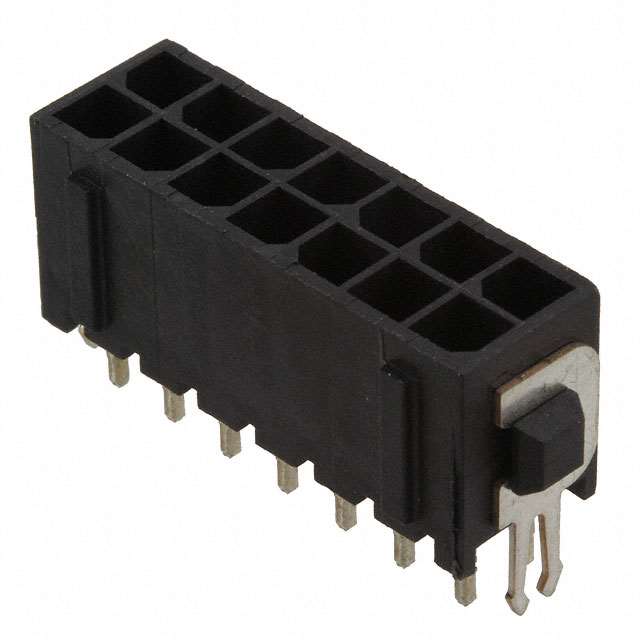

1-794682-4

$1.59

Description：CONN HEADER VERT 14POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:b01540f56ea6 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-794682-4 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 14POS 3MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794682-4

Description：CONN HEADER VERT 14POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.118" (3.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.125" (3.18mm)
Overall Contact Length：-
Insulation Height：0.364" (9.25mm)
Contact Shape：Square
Contact Finish - Mating：Gold or Gold-Palladium
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin-Lead
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Board Lock
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250V

Headers, Male Pins datasheet and documents for 1-794682-4

1-794682-4

Headers, Male Pins Overview

The TE Connectivity AMP Connectors part number 1-794682-4 is a Micro MATE-N-LOK series header connector designed for through-hole PCB mounting. It features a 4-position, 2-row configuration with a 3mm pitch. The contacts are male pins made of brass with gold plating, housed in black nylon insulation rated UL 94 V-0. The component supports a voltage rating of 250V and a current rating of 5A. This specific variant is officially classified as obsolete by the manufacturer.
