Headers, Male Pins Overview

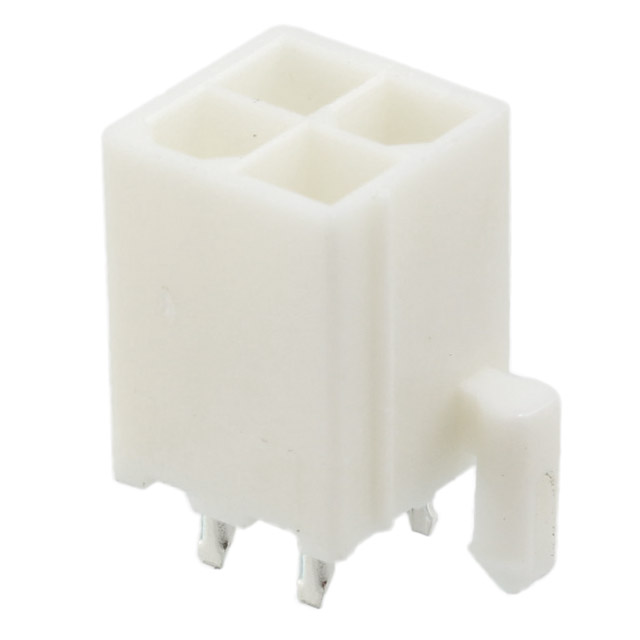

The TE Connectivity AMP Connectors part number 1586040-4 is a dual-row, vertical header connector from the VAL-U-LOK series. It features a 4.2mm (0.165 inch) mating pitch and accommodates four positions. The connector utilizes square male pin contacts with tin plating for reliable electrical interfacing. Designed for through-hole mounting on printed circuit boards, it supports solder termination methods. The housing is constructed from natural polyamide (PA/nylon) insulation material rated UL94 V-0 for flammability. Electrical specifications include a current rating of 9A and a voltage rating of 600VAC. The operating temperature range spans from -40°C to 105°C.

Headers, Male Pins Feature Summary

• Features a board lock mechanism to secure the header to the PCB during assembly.
• Incorporates a four-wall shroud design to provide shielding and alignment.
• Utilizes a slide-lock fastening system for mating engagement.

Headers, Male Pins Applications

• General purpose electronic interconnections
• Industrial equipment signal routing
• Lighting system power distribution

Headers, Male Pins Procurement Notes

Verify the specific manufacturer datasheet to confirm compliance with RoHS3 directives and REACH regulations. Ensure that the required contact length and insulation height match the target PCB stack-up and mating component dimensions. Cross-reference the basic product number 1586040 to identify compatible mating housings and accessories within the same VAL-U-LOK family.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertical header with board locking capabilities is required for high-current applications up to 9A. Consider the 4.2mm pitch constraint against available PCB trace spacing. Evaluate the natural color option against aesthetic requirements or visibility needs in the final assembly environment.

Headers, Male Pins Part Context

This connector belongs to the VAL-U-LOK series by TE Connectivity AMP Connectors, a line known for robust rectangular interconnect solutions. The series offers various row counts and pin configurations tailored for diverse industrial and general-purpose markets. The 1586040-4 represents the four-position variant within this broader portfolio of dual-row headers.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are documented in the provided source material.
