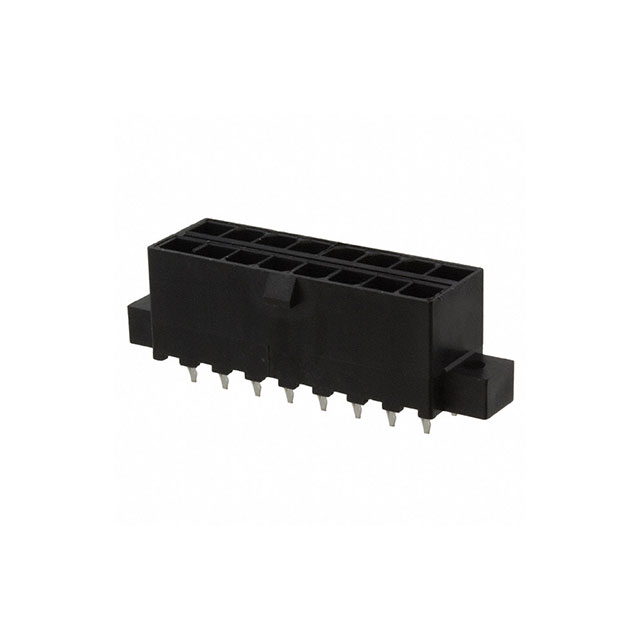

15977162

$2.65

Description：CONN HEADER VERT 16POS 4.2MM
Series：Mini-Fit TPA 30069
Mfr：Molex
Package：Tray

SKU:d62e066fbbd2 Category: Headers, Male Pins Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

15977162 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER VERT 16POS 4.2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 15977162

Description：CONN HEADER VERT 16POS 4.2MM
Series：Mini-Fit TPA 30069
Mfr：Molex
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.217" (5.51mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：35.4µin (0.90µm)
Contact Finish - Post：Tin
Contact Material：Brass Alloy
Insulation Material：Polyester
Features：Mounting Flange
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 15977162

15977162

Headers, Male Pins Overview

The Molex part number 15977162 is identified as a male pin header connector. The component features black resin housing and tin-plated contacts. It is specified for surface mount (SMD) wire-to-board applications. The product listing indicates compliance with RoHS standards. This specific part number is noted as not yet officially released to the online product catalog, resulting in limited available technical documentation.

Explore related parts through Rectangular Connectors, Connectors, Interconnects, all product categories, ChipApex homepage.
