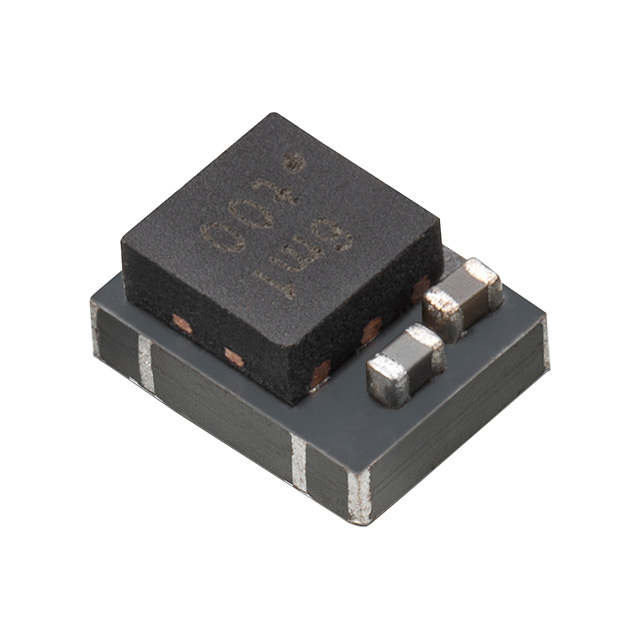

171960501

171960501 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is DC DC CONVERTER 0.6-5.5V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 171960501

• Description：DC DC CONVERTER 0.6-5.5V
• Series：MagI³C, VDRM
• Mfr：Würth Elektronik
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：2.7V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：0.6 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：600mA
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：OCP, OTP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：96%
• Mounting Type：Surface Mount
• Package / Case：6-LGA Module
• Size / Dimension：0.13" L x 0.10" W x 0.06" H (3.2mm x 2.5mm x 1.6mm)
• Supplier Device Package：6-LGA-EP (3.2x2.5)
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 171960501
