Headers, Male Pins Overview

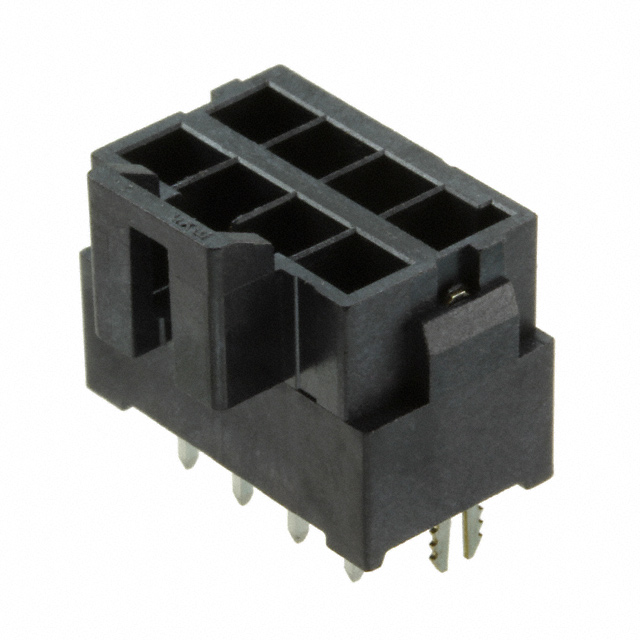

The Molex 172299-1108 is a ULTRAFIT series pin header designed for wire-to-board connections. It features a 3.5 mm pitch and a dual-row configuration with eight contacts. The component utilizes a vertical through-hole mounting style and includes solder clips for secure PCB attachment. The housing is black, while the tin-plated terminals ensure reliable conductivity. This high-density connector supports current ratings of 12A or 14A and offers low mating force characteristics suitable for space-constrained applications.

Headers, Male Pins Feature Summary

• Space-saving design with high-density layout
• Low mating force mechanism
• Glow-wire capable construction
• Integrated solder clips for stability

Headers, Male Pins Applications

• Industrial automation systems
• Consumer electronics assemblies
• Data communication equipment
• Automotive infotainment interfaces

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Molex documentation to confirm terminal plating and housing color specifications. Ensure compatibility with mating receptacles regarding pitch and row count. Confirm that the glow-wire capability meets the required safety standards for the intended application environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical, dual-row header with a 3.5 mm pitch is required. The integrated solder clips provide mechanical stability during assembly. Consider the tin plating for general-purpose conductivity needs. Evaluate the 12A or 14A current rating against the circuit's power requirements to ensure safe operation within the specified thermal limits.

Headers, Male Pins Part Context

This header belongs to the ULTRAFIT family, which focuses on high-density interconnect solutions. The series is engineered for applications requiring robust performance in compact spaces. Molex designs these connectors to support various industries, including automotive and industrial sectors, by offering reliable signal and power transmission through standardized form factors.

Headers, Male Pins Replacement Considerations

Consult official Molex substitution guides for verified alternatives. Generic headers may lack the specific solder clip integration or glow-wire certification. Verify that any substitute matches the 3.5 mm pitch and dual-row configuration to maintain mechanical and electrical compatibility.
