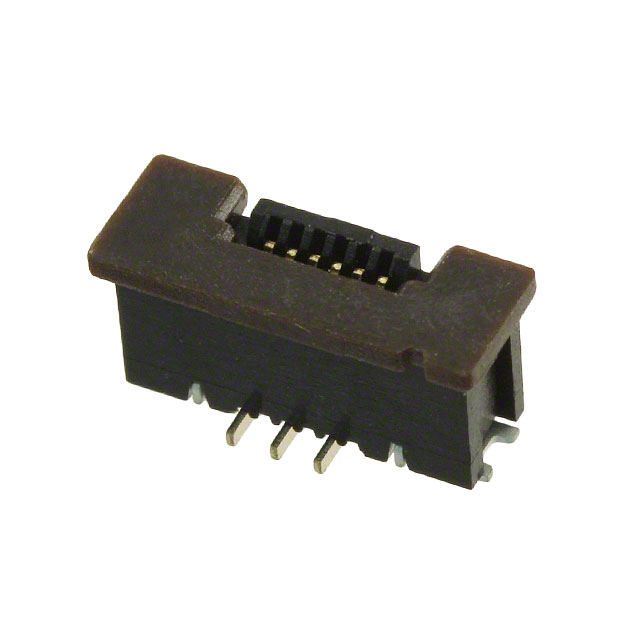

1734742-6

1734742-6 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN FFC FPC VERT 6POS 0.5MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 1734742-6

• Description：CONN FFC FPC VERT 6POS 0.5MM SMD
• Series：-
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：6
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.163" (4.15mm)
• Locking Feature：Slide Lock
• Cable End Type：Straight or Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Thermoplastic, Glass Filled
• Actuator Material：Thermoplastic
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-20°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 1734742-6
