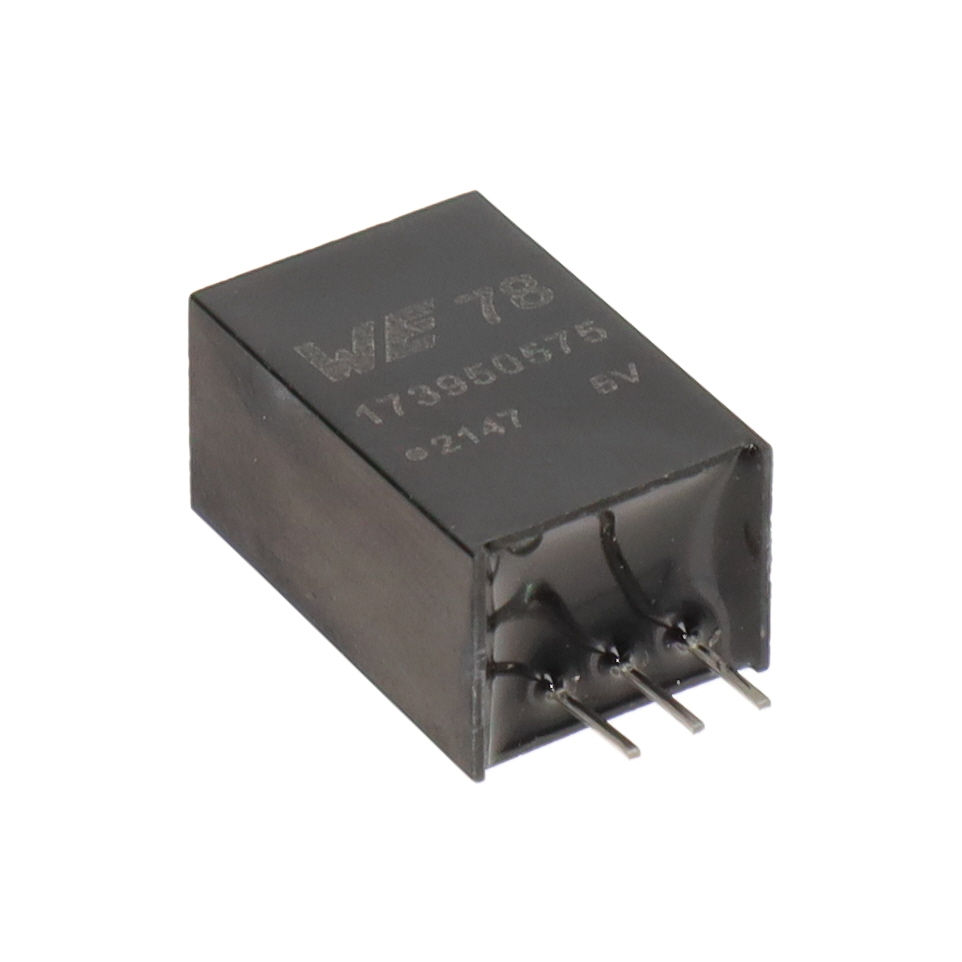

173950575

173950575 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is WPME-FDSM FIXED STEP DOWN REGULA. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 173950575

• Description：WPME-FDSM FIXED STEP DOWN REGULA
• Series：MagI³C, FDSM
• Mfr：Würth Elektronik
• Package：Tube
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：-
• Voltage - Input (Max)：74.5V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA
• Power (Watts)：3 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
