1779205111

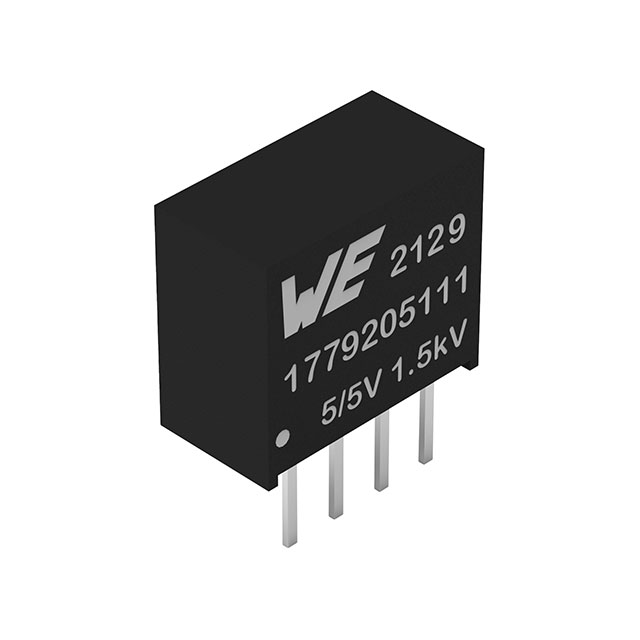

1779205111 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is WPME-FISM FIXED ISOLATED SIP MOD. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 1779205111

• Description：WPME-FISM FIXED ISOLATED SIP MOD
• Series：MagI³C, FISM
• Mfr：Würth Elektronik
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：4-SIP Module
• Size / Dimension：0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm)
• Supplier Device Package：4-SIP
• Control Features：-
• Approval Agency：cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 1779205111
