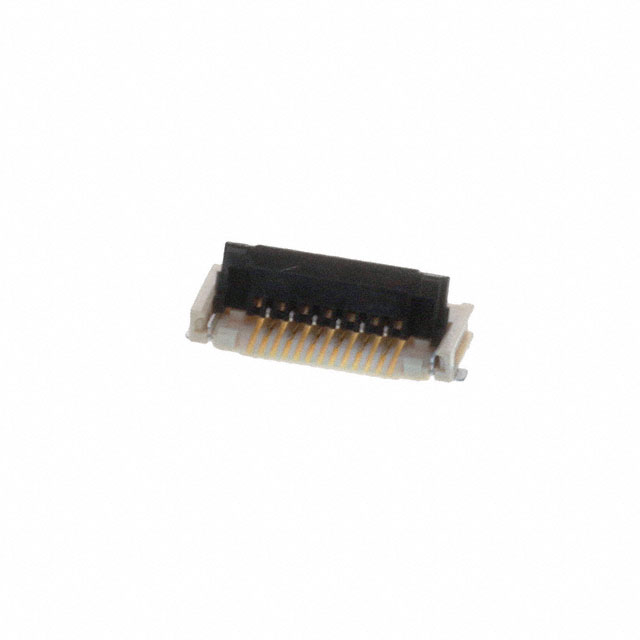

2005280060

2005280060 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC FPC BOTTOM 6POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 2005280060

• Description：CONN FFC FPC BOTTOM 6POS 1MM R/A
• Series：Easy-On FD19 200528
• Mfr：Molex
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：6
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.075" (1.90mm)
• Locking Feature：Flip Lock
• Cable End Type：Straight, Tabbed
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP), Glass Filled
• Actuator Material：Polyamide (PA), Nylon, Glass Filled
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：125V
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 2005280060
