2011970361

$1.25

Description：SPOT-ON 2.0 DR 201197 EMBSTP PKG
Series：Spot-On 2.0 201197
Mfr：Molex
Package：Tape & Reel (TR)

SKU:842fba83a0dc Category: Headers, Male Pins Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2011970361 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is SPOT-ON 2.0 DR 201197 EMBSTP PKG. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 2011970361

Description：SPOT-ON 2.0 DR 201197 EMBSTP PKG
Series：Spot-On 2.0 201197
Mfr：Molex
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：36
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.354" (9.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：39.4µin (1.00µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon, Glass Filled
Features：Solder Retention
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250V

Headers, Male Pins datasheet and documents for 2011970361

2011970361

Headers, Male Pins Overview

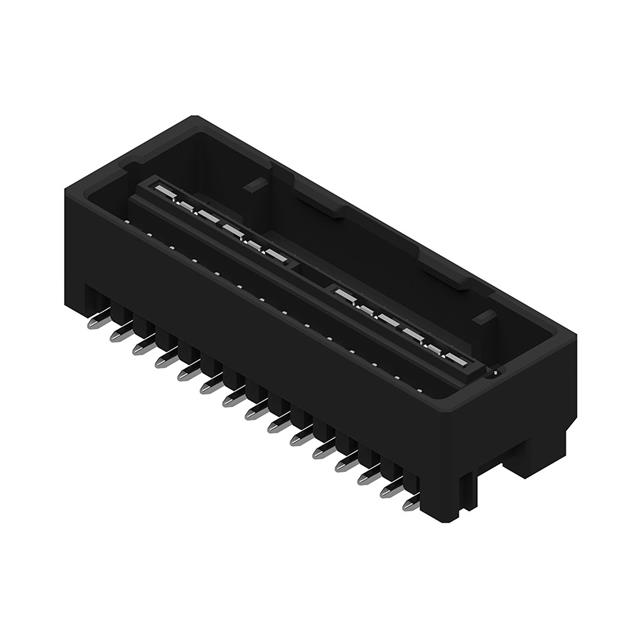

The Molex 2011970361 is a SPOT-ON surface mount header featuring 36 positions and a 2.00 mm pitch. It is designed as a male connector for reliable interconnects. The contacts are constructed from brass, while the insulation utilizes glass-filled polyamide (PA) or nylon. The component includes solder retention features to ensure secure mounting during assembly. It operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

Surface mount design for automated placement
Solder retention capability for board stability
Glass-filled polyamide insulation material

Headers, Male Pins Applications

Consumer electronics assemblies
Industrial control systems
Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify that the specific order matches the 36-position configuration and 2.00 mm pitch requirements. Confirm the insulation material specification aligns with thermal constraints. Ensure compatibility with standard surface mount reflow profiles. Check for any specific handling instructions regarding the solder retention feature during manufacturing.

Headers, Male Pins Selection Notes

Select this part when a high-density 36-position connection is required on a surface mount PCB. The 2.00 mm pitch offers a balance between density and spacing. Consider the operating temperature range of -40°C to 105°C for environmental suitability. The brass contact material provides necessary conductivity for signal transmission.

Headers, Male Pins Part Context

This component belongs to the SPOT-ON series of headers, which are characterized by their surface mount orientation and robust construction. The series is widely used in applications requiring reliable electrical connections in compact spaces. The male pin configuration allows for mating with corresponding female connectors or sockets.
